Type 6519 NAMUR
3/2 and 5/2 Way Solenoid valves
with NAMUR lnterface
|
|
|
|
Design and Function

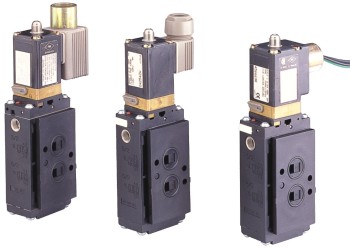

The type 6519 NAMUR is a high quality servoassisted solenoid valve, in
3/2 and 5/2 way with NAMUR interface. Piloted by the Burkert 32 mm
solenoid system for standard version or by the FM approved Class I Div. I
or Class I Div. ll solenoid system for explosion proof version.
The high flow rate valve is light in weight, corrosion resistant and has
a long and reliable service life on lubricated and unlubricated air.
The valve comes with manual override and pressure indicator.
|
|
|
3/2 way valve with exhaust air feedback, when
de-energized, outlet 2 exhausted
5/2 way valve , when de-energized, pressure port 1
connected to utlet 2, outlet 4 exhausted
|
|
|
|
|
|
|
|
|
|
Circuit function:
|
W-3/2 and 5/2 way
Refer to symbols
(Same valve for both function)
|
|
Material
|
|
|
Body:
|
Polyamide
|
|
Threaded insert:
|
Nickel plated brass
|
|
Pilot base:
|
Brass
|
|
Seal:
|
NBR / Polyurethene
|
|
Orifice:
|
6mm
|
|
Pressure range:
|
2 to 8 bar
|
|
Flow(QNn):
|
900 1/mm
|
|
Media temperature:
|
-10 to +60℃
|
|
Response time:
|
Opening approx. 25 ms Closing approx. 40 ms (Times
measured at outlet 2 or 4 from switching on until pressure rise to 90%
pressure drop to 10% of a working pressure of 6 bar)
|
|
Operating voltages
|
|
|
Standard version:
|
24, 110, 220, 240V AC, 24V DC
|
|
FM version:
|
24, 120, 240V AC, 24V DC
|
|
Voltage tolerance:
|
10%
|
|
Power consumption:
|
AC 21 VA (inrush)
12 VA/8W (hold), DC 8 W
|
|
Coil insulation class:
|
Class H.(STD.)
|
|
Duty cycle:
|
100% continuously rated
|
|
Electrical connection
|
|
|
Standard version:
|
Cable plug for 7mmφcable
|
|
FM version:
|

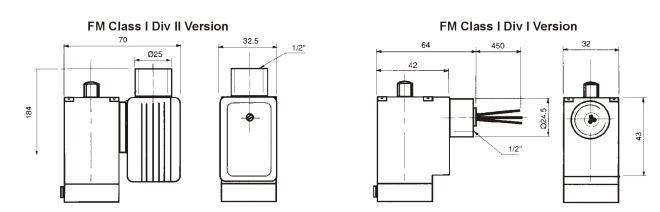

Class I Div I─moulded in 3×lead wires, length 450mm
with 1/2" conduit hub
Class I Div II─Cable plug with 1/2" conduit hub
|
|
Classification:
|
IP 65
|
|
Port connections
|
|
|
Inlet and exhaust:
|
1/4"NPT
|
|
Outlet:
|
NAMUR interface
|
|
Installation:
|
As required (To convert 5/2 to 3/2 way blank off
exhaust port 3 with the enclosed brass plug and turn NAMUR adaptor plate
around for arrow mark to point at athe 3/2 symbol)
|
|
|
|
|

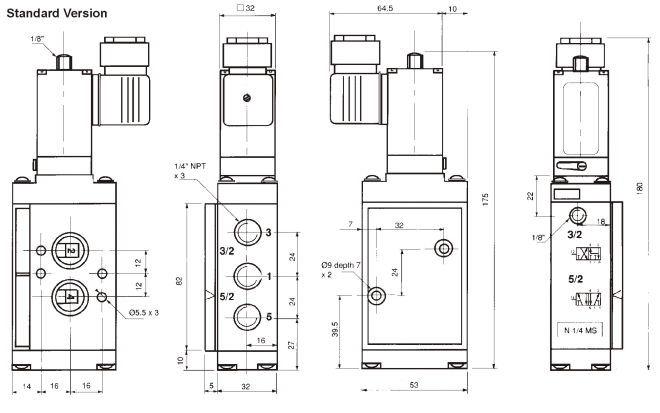

Dimensions(in mm unless otherwise indicated)
|
|
|
|
|
|
|
|
Ordering Chart
|
|
Circuit
Function
|
Orifice
DN
(mm)
|
Flow Rate
Air QNn
(l/mm)
|
Port
Connection
|
Pressure
Range
(bar)
|
Weight
(kg)
|
Voltage
|
Version
|
Ordering No.
|
|
W
(3/2&5/2way)
|
6.0
|
900
|
N1/4
|
2-8
|
0.5
|
24/=
|
Standard
|
SN04051
|
|
|
|
|
|
|
24/56
|
|
SN04052
|
|
|
|
|
|
|
110/56
|
|
SN04053
|
|
|
|
|
|
|
220/56
|
|
SN04054
|
|
|
|
|
|
|
240/56
|
|
SN04055
|
|
W
(3/2&5/2way)
|
6.0
|
900
|
N1/4
|
2-8
|
0.51
|
24/=
|
FM ClassⅠDivⅡ
|
SN04056
|
|
|
|
|
|
|
24/56
|
|
SN04057
|
|
|
|
|
|
|
120/56
|
|
SN04058
|
|
|
|
|
|
|
240/56
|
|
SN04059
|
|
W
(3/2&5/2way)
|
6.0
|
900
|
N1/4
|
2-8
|
0.55
|
24/=
|
FM ClassⅠDivⅠ
|
SN04060
|
|
|
|
|
|
|
24/56
|
|
SN04061
|
|
|
|
|
|
|
120/56
|
|
SN04062
|
|
|
|
|
|
|
240/56
|
|
SN04063
|
|
|
|
|
We reserve the right to make technical changes. In case
of special application requirements please ask for advise.
|
