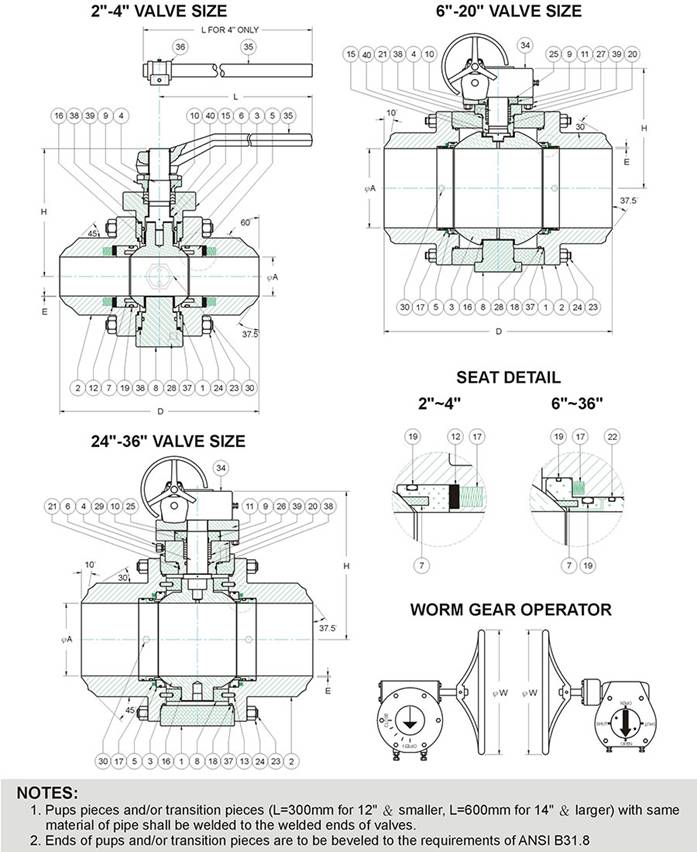

Part No. |
Part Name |
ASTM A105,A216 WCB |
ASTM A350 LF2 |
ASTM A182
F316,A351 CF8M |
|
1 |
Body |
ASTM A105 / A216 WCB |
ASTM A350 LF2 |
ASTM A182 F316 / A351
CF8M |
|
2 |
Closure |
ASTM A105 / A216 WCB |
ASTM A350 LF2 |
ASTM A182 F316 / A351
CF8M |
|
3 |
Ball |
ASTM A105 ENP / ASTM A350
LF2 ENP / ASTM A351 CF8M |
||
|
4 |
Anti-Static
Stem |
ASTM A276- 316 / ANSI
1018-1045 ENP |
||
|
5 |
Seat Ring |
ASTM A105 ENP / ASTM A350
LF2 ENP / ASTM A351 CF8M |
||
|
6 |
Trunnion |
ASTM A105 |
ASTM A350 LF2 |
ASTM A182 F316 / A351
CF8M |
|
7 |
Insert, Seat
Ring |
RPTFE / Nylon / Peek /
Vespel |
||
|
8 |
Bearing
Retainer |
ASTM A105 |
ASTM A350 LF2 |
ASTM A182 F316 / A351
CF8M |
|
9 |
Gland |
Carbon Steel / Stainless
Steel |
||
|
10 |
Gland Bushing |
PTFE / Graphite |
||
|
11 |
Adapter Plate |
Carbon Steel / Stainless
Steel |
||
|
12 |
Seat Sub Seal |
S.S.316 + Grafoil |
||
|
13 |
Tablet Pin |
ASTM A193 B7 |
ASTM A193 B8 |
|
|
14 |
Stem Key |
Carbon Steel |
||
|
15 |
Thrust Washer,
Stem |
PTFE / Graphite |
||
|
16 |
Bearing, Ball |
Du Dry Bearing / Teflon |
||
|
17 |
Spring, Seat
Ring |
Inconel X 750 |
||
|
18 |
O-Ring, Body |
Viton-A |
||
|
19 |
O-Ring, Seat
Ring |
Viton-A |
||
|
20 |
O-Ring, Stem |
Viton-A |
||
|
21 |
O-Ring, Retainer
& Trunnion |
Viton-A |
||
|
22 |
O-Ring, Grease
Fitting |
Viton-A |
||
|
23 |
Body Stud |
ASTM A193 B7(M) |
ASTM A193 B8(M) |
|
|
24 |
Body Nut |
ASTM A194 2H(M) |
ASTM A194 8A or 8 |
|
|
25 |
Cap Screw,
Gland |
Carbon Steel |
Stainless Steel |
|
|
26 |
Cap Screw,
Trunnion |
Carbon Steel |
Stainless Steel |
|
|
27 |
Nut, Adapter
Plate |
Carbon Steel |
Stainless Steel |
|
|
28 |
Cap Screw,
Retainer |
Carbon Steel |
Stainless Steel |
|
|
29 |
Grease
Fitting, Stem |
Carbon Steel |
||
|
30 |
Grease
Fitting, Seat |
Carbon Steel |
||
|
31 |
Check Valve |
Carbon Steel |
||
|
32 |
Vent Plug |
Carbon Steel |
||
|
33 |
Drain Valve |
Carbon Steel |
||
|
34 |
Worm Gear
Operator |
Commercial |
||
|
35 |
Handle |
Ductile Iron |
||
|
36 |
T-Coup |
Ductile Iron |
||
|
37 |
Gasket, Body |
PTFE / Graphite |
||
|
38 |
Gasket,
Retainer & Trunnion |
PTFE / Graphite |
||
|
39 |
Stem Packing |
PTFE / Graphite |
||
|
40 |
Stem Bearing |
PTFE / Graphite |
||
VALVE BODY RATING
These are maximum working pressure ratings for the
valve body only. The seat ratings determine the practical pressure limitations
according to actual service conditions. Test pressures are for hydrostatic test
with ball half open.
|
|
PSI BY CLASS |
|
|||
|
MATERIAL |
TEMPERATURE |
150 |
300 |
600 |
MIN.ALLOW TEMP |
|
ASTM A105 |
-20 to 100F |
285 |
740 |
1480 |
-20F |
|
ASTM A350 LF2 |
-20to 100F |
285 |
740 |
1480 |
-50F |
|
ASTM A182 F316 |
-20 to 100F |
275 |
720 |
1440 |
-80F |
Above ratings correspond to ratings of ANSI
B16.34-1988 or the material grades shown in the
bill of materials.lf F316 tainless steel valves art to be used below -20°F the
order hould specify.

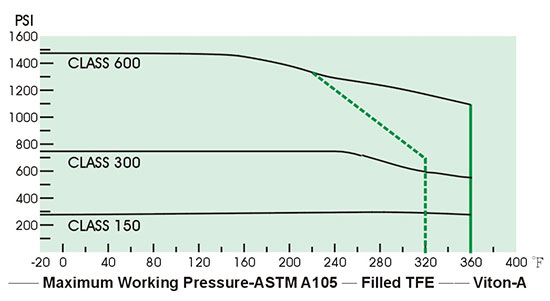

VALVE SEAT RATINGS
The seat ratings, indicated by the by the bold
lines in the chart, are based on differential pressure with the valve ball in
the fully closed position and refers to the seats only.
Class
150
|
Valve Size |
Approximate
dimension is mm |
|||||||||||
|
A |
B |
C |
D |
E |
F |
H |
L |
W |
N |
M |
P |
|
|
2 |
50.0 |
92.0 |
152.4 |
177.8 |
1.6 |
15.9 |
150.0 |
404.0 |
- |
4 |
19 |
120.6 |
|
3 |
77.0 |
127.0 |
190.5 |
203.2 |
1.6 |
19.1 |
190.0 |
445.0 |
- |
4 |
19 |
152.5 |
|
4 |
101.6 |
157.0 |
228.6 |
228.6 |
1.6 |
23.9 |
250.0 |
1143.0 |
- |
8 |
19 |
190.5 |
|
6 |
152.4 |
216.0 |
279.4 |
393.7 |
1.6 |
25.4 |
320.0 |
Gear |
510 |
8 |
22 |
241.5 |
|
8 |
203.2 |
270.0 |
342.9 |
457.9 |
1.6 |
28.6 |
350.0 |
Gear |
510 |
8 |
22 |
298.5 |
|
10 |
254.0 |
324.0 |
406.4 |
533.4 |
1.6 |
30.2 |
370.0 |
Gear |
510 |
12 |
25 |
362.0 |
|
12 |
304.8 |
381.0 |
482.6 |
609.6 |
1.6 |
31.8 |
470.0 |
Gear |
510 |
12 |
25 |
432.0 |
|
14 |
336.6 |
413.0 |
533.4 |
685.8 |
1.6 |
35.0 |
510.0 |
Gear |
510 |
12 |
28 |
476.5 |
|
16 |
387.3 |
470.0 |
596.9 |
762.0 |
1.6 |
36.6 |
540.0 |
Gear |
510 |
16 |
28 |
539.5 |
|
18 |
438.2 |
533.0 |
635.0 |
863.6 |
1.6 |
39.7 |
590.0 |
Gear |
510 |
16 |
32 |
578.0 |
|
20 |
489.0 |
584.0 |
698.5 |
914.4 |
1.6 |
42.9 |
615.0 |
Gear |
760 |
20 |
32 |
635.0 |
|
24 |
590.6 |
692.0 |
812.8 |
1066.8 |
1.6 |
47.7 |
770.0 |
Gear |
760 |
20 |
35 |
749.5 |
|
26 |
635.0 |
749.0 |
870 |
1143.0 |
1.6 |
68.3 |
785.0 |
Gear |
760 |
24 |
35 |
806.5 |
|
28 |
685.8 |
800.0 |
927.1 |
1244.6 |
1.6 |
71.4 |
889.0 |
Gear |
760 |
28 |
35 |
863.6 |
|
30 |
736.6 |
857.0 |
984.3 |
1295.4 |
1.6 |
74.7 |
942.0 |
Gear |
760 |
28 |
35 |
914.4 |
|
32 |
781.0 |
914.0 |
1060.5 |
1371.6 |
1.6 |
80.8 |
950.0 |
Gear |
760 |
28 |
41 |
977.9 |
|
34 |
831.9 |
965.0 |
1111.3 |
1473.2 |
1.6 |
82.6 |
990.6 |
Gear |
760 |
32 |
41 |
1028.7 |
|
36 |
876.3 |
1022.0 |
1168.4 |
1524.0 |
1.6 |
90.4 |
1092.0 |
Gear |
760 |
32 |
41 |
1085.9 |
|
Note: 1.Standard Port Design Information
Available 2.Operation 2"-4"Lever Actuated 3.Height of raised face is 1.6mm each |
||||||||||||
Class
300
|
Valve Size |
Approximate
dimension is mm |
|||||||||||
|
A |
B |
C |
D |
E |
F |
H |
L |
W |
N |
M |
P |
|
|
2 |
50.0 |
92.0 |
165.1 |
215.9 |
1.6 |
22.3 |
150.0 |
404.0 |
- |
8 |
19 |
127.0 |
|
3 |
77.0 |
127.0 |
209.6 |
282.7 |
1.6 |
28.6 |
190.0 |
445.0 |
- |
8 |
22 |
168.0 |
|
4 |
101.6 |
157.0 |
254.0 |
304.8 |
1.6 |
31.8 |
250.0 |
1143.0 |
- |
8 |
22 |
200.0 |
|
6 |
152.4 |
216.0 |
317.5 |
403.4 |
1.6 |
36.6 |
320.0 |
Gear |
510 |
12 |
22 |
270.0 |
|
8 |
203.2 |
270.0 |
381.0 |
501.7 |
1.6 |
41.3 |
350.0 |
Gear |
510 |
12 |
25 |
330.0 |
|
10 |
254.0 |
324.0 |
444.5 |
568.5 |
1.6 |
47.7 |
370.0 |
Gear |
510 |
16 |
29 |
387.0 |
|
12 |
304.8 |
381.0 |
520.7 |
647.7 |
1.6 |
50.8 |
470.0 |
Gear |
510 |
16 |
32 |
451.0 |
|
14 |
336.6 |
413.0 |
584.2 |
762.0 |
1.6 |
54.0 |
510.0 |
Gear |
510 |
20 |
32 |
514.5 |
|
16 |
387.3 |
470.0 |
647.7 |
838.2 |
1.6 |
57.2 |
540.0 |
Gear |
510 |
20 |
35 |
571.5 |
|
18 |
438.2 |
533.0 |
711.2 |
914.4 |
1.6 |
60.4 |
590.0 |
Gear |
510 |
24 |
35 |
628.5 |
|
20 |
489.0 |
584.0 |
774.7 |
990.6 |
1.6 |
63.5 |
615.0 |
Gear |
760 |
24 |
35 |
686.0 |
|
24 |
590.6 |
692.0 |
914.4 |
1143.0 |
1.6 |
69.9 |
770.0 |
Gear |
760 |
24 |
41 |
813.0 |
|
26 |
635.0 |
749.0 |
971.6 |
1244.6 |
1.6 |
79.3 |
785.0 |
Gear |
760 |
28 |
45 |
876.3 |
|
28 |
685.8 |
800.0 |
1035.0 |
1346.0 |
1.6 |
85.9 |
899.0 |
Gear |
760 |
28 |
45 |
939.8 |
|
30 |
736.6 |
857.0 |
1092.2 |
1397.0 |
1.6 |
92.0 |
942.0 |
Gear |
760 |
28 |
48 |
997.0 |
|
32 |
781.0 |
914.0 |
1149.4 |
1525.0 |
1.6 |
98.6 |
950.0 |
Gear |
760 |
28 |
51 |
1054.1 |
|
34 |
831.9 |
965.0 |
1206.5 |
1625.6 |
1.6 |
101.6 |
990.6 |
Gear |
760 |
28 |
51 |
1104.9 |
|
36 |
876.3 |
1022.0 |
1270.0 |
1727.2 |
1.6 |
104.7 |
1092.2 |
Gear |
760 |
32 |
54 |
1168.4 |
|
Note: 1.Standard Port Design Information
Available 2.Operation 2"-4"Lever Actuated 3.Height of raised face is 1.6mm each |
||||||||||||
Class600
|
Valve Size |
Approximate
dimension is mm |
|||||||||||
|
A |
B |
C |
D |
E |
F |
H |
L |
W |
N |
M |
P |
|
|
2 |
50.0 |
92.0 |
165.1 |
292.1 |
1.6 |
31.8 |
150.0 |
404.0 |
- |
8 |
19 |
127.0 |
|
3 |
77.0 |
127.0 |
209.6 |
355.6 |
1.6 |
38.2 |
190.0 |
445.0 |
- |
8 |
22 |
168.0 |
|
4 |
101.6 |
157.0 |
273.1 |
431.8 |
1.6 |
44.5 |
250.0 |
1143.0 |
- |
8 |
25 |
216.0 |
|
6 |
152.4 |
216.0 |
355.6 |
558.8 |
1.6 |
36.6 |
320.0 |
Gear |
510 |
12 |
29 |
292.0 |
|
8 |
203.2 |
270.0 |
419.1 |
660.4 |
1.6 |
41.3 |
350.0 |
Gear |
510 |
12 |
32 |
349.0 |
|
10 |
254.0 |
324.0 |
508.0 |
787.4 |
1.6 |
47.7 |
370.0 |
Gear |
510 |
16 |
35 |
432.0 |
|
12 |
304.8 |
381.0 |
558.8 |
838.2 |
1.6 |
50.8 |
470.0 |
Gear |
510 |
20 |
35 |
489.0 |
|
14 |
336.6 |
413.0 |
603.3 |
889.0 |
1.6 |
54.0 |
510.0 |
Gear |
510 |
20 |
38 |
527.0 |
|
16 |
387.3 |
470.0 |
685.8 |
990.6 |
1.6 |
57.2 |
540.0 |
Gear |
510 |
20 |
41 |
603.0 |
|
18 |
438.2 |
533.0 |
743.0 |
1092.2 |
1.6 |
60.4 |
590.0 |
Gear |
510 |
20 |
45 |
654.0 |
|
20 |
489.0 |
584.0 |
812.8 |
1193.8 |
1.6 |
63.5 |
615.0 |
Gear |
760 |
24 |
45 |
723.9 |
|
24 |
590.6 |
692.0 |
939.8 |
1397.0 |
1.6 |
69.9 |
775.0 |
Gear |
760 |
24 |
51 |
838.2 |
|
26 |
635.0 |
749.0 |
1016.0 |
1447.8 |
1.6 |
79.3 |
785.0 |
Gear |
760 |
28 |
51 |
914.4 |
|
28 |
685.8 |
800.0 |
1073.2 |
1549.4 |
1.6 |
85.9 |
899.0 |
Gear |
760 |
28 |
54 |
965.2 |
|
30 |
736.6 |
857.0 |
1130.3 |
1651.0 |
1.6 |
92.0 |
942.0 |
Gear |
760 |
28 |
54 |
1022.4 |
|
32 |
781.0 |
914.0 |
1193.8 |
1778.0 |
1.6 |
98.6 |
950.0 |
Gear |
760 |
28 |
60 |
1079.5 |
|
34 |
831.9 |
965.0 |
1244.6 |
1930.4 |
1.6 |
101.6 |
990.6 |
Gear |
760 |
28 |
60 |
1130.3 |
|
36 |
876.3 |
1022.0 |
1314.5 |
2082.8 |
1.6 |
104.7 |
1092.2 |
Gear |
760 |
28 |
66 |
1193.8 |
|
Note: 1.Standard Port Design Information
Available 2.Operation 2"-4"Lever Actuated 3.Height of raised face is 1.6mm each |
||||||||||||
Class900
|
Valve Size |
Approximate
dimension is mm |
|||||||||||
|
A |
B |
C |
D |
E |
F |
H |
L |
W |
N |
M |
P |
|
|
2 |
50.0 |
92.0 |
215.9 |
368.3 |
1.6 |
44.5 |
150.0 |
404.0 |
- |
8 |
25 |
165.1 |
|
3 |
77.0 |
127.0 |
241.3 |
381.0 |
1.6 |
44.5 |
190.0 |
445.0 |
- |
8 |
25 |
190.5 |
|
4 |
101.6 |
157.0 |
292.1 |
457.2 |
1.6 |
50.8 |
250.0 |
Gear |
510 |
8 |
32 |
235.0 |
|
6 |
152.4 |
216.0 |
381.0 |
609.6 |
1.6 |
62.0 |
320.0 |
Gear |
510 |
12 |
32 |
317.5 |
|
8 |
203.2 |
270.0 |
469.9 |
736.6 |
1.6 |
69.9 |
350.0 |
Gear |
760 |
12 |
38 |
393.7 |
|
10 |
254.0 |
324.0 |
546.1 |
838.2 |
1.6 |
76.2 |
419.0 |
Gear |
760 |
16 |
38 |
469.9 |
|
12 |
304.8 |
381.0 |
609.6 |
965.2 |
1.6 |
85.6 |
528.3 |
Gear |
760 |
20 |
38 |
533.4 |
|
14 |
336.6 |
413.0 |
641.4 |
1028.7 |
1.6 |
92.2 |
541.0 |
Gear |
760 |
20 |
41 |
558.8 |
|
16 |
387.3 |
470.0 |
704.9 |
1130.3 |
1.6 |
95.3 |
582.0 |
Gear |
760 |
20 |
45 |
616.0 |
|
18 |
438.2 |
533.0 |
787.4 |
1219.2 |
1.6 |
108.0 |
645.2 |
Gear |
760 |
20 |
51 |
685.8 |
|
20 |
489.0 |
584.0 |
857.3 |
1320.8 |
1.6 |
114.3 |
691.0 |
Gear |
760 |
20 |
54 |
749.3 |
|
24 |
590.6 |
692.0 |
1041.4 |
1549.4 |
1.6 |
146.1 |
775.0 |
Gear |
760 |
20 |
67 |
901.7 |
|
Note: 1.Standard Port Design Information
Available 2.Operation 2"-4"Lever
Actuated,6”-36” 3.Height of raised face is 6.4mm each |
||||||||||||
Class1500
|
Valve Size |
Approximate
dimension is mm |
|||||||||||
|
A |
B |
C |
D |
E |
F |
H |
L |
W |
N |
M |
P |
|
|
2 |
50.0 |
92.0 |
215.9 |
368.3 |
1.6 |
44.5 |
150.0 |
404.0 |
- |
8 |
25 |
165.1 |
|
3 |
77.0 |
127.0 |
266.7 |
469.9 |
1.6 |
54.1 |
190.0 |
445.0 |
- |
8 |
32 |
203.2 |
|
4 |
101.6 |
157.0 |
311.2 |
546.1 |
1.6 |
60.2 |
250.0 |
Gear |
510 |
12 |
35 |
241.3 |
|
6 |
152.4 |
216.0 |
393.7 |
704.9 |
1.6 |
88.9 |
320.0 |
Gear |
510 |
12 |
38 |
317.5 |
|
8 |
203.2 |
270.0 |
482.6 |
831.9 |
1.6 |
98.3 |
350.0 |
Gear |
760 |
12 |
45 |
393.7 |
|
10 |
254.0 |
324.0 |
584.2 |
990.6 |
1.6 |
114.3 |
419.0 |
Gear |
760 |
16 |
51 |
482.6 |
|
12 |
304.8 |
381.0 |
673.1 |
1130.3 |
1.6 |
130.3 |
528.3 |
Gear |
760 |
16 |
54 |
571.5 |
|
14 |
336.6 |
413.0 |
749.3 |
1257.3 |
1.6 |
139.7 |
541.0 |
Gear |
760 |
16 |
60 |
635.0 |
|
16 |
387.3 |
470.0 |
825.5 |
1384.3 |
1.6 |
152.4 |
582.0 |
Gear |
760 |
16 |
67 |
704.9 |
|
18 |
438.2 |
533.0 |
914.4 |
1536.7 |
1.6 |
168.4 |
645.2 |
Gear |
760 |
16 |
73 |
774.7 |
|
20 |
489.0 |
584.0 |
984.3 |
1663.7 |
1.6 |
184.2 |
691.0 |
Gear |
760 |
16 |
79 |
831.9 |
|
24 |
590.6 |
692.0 |
1168.4 |
2044.7 |
1.6 |
209.6 |
775.0 |
Gear |
760 |
16 |
92 |
990.6 |
|
Note: 1.Standard Port Design Information
Available 2.Operation 2"-4"Lever
Actuated,6”-36” 3.Height of raised face is 6.4mm each |
||||||||||||
|
|
Class150 |
Class300 |
Class600 |
Class900 |
Class1500 |
|||||
|
Valve Size |
Approx. Wt.kg |
Cv |
Approx. Wt.kg |
Cv |
Approx. Wt.kg |
Cv |
Approx. Wt.kg |
Cv |
Approx. Wt.kg |
Cv |
|
2 |
21 |
500 |
27 |
460 |
31 |
400 |
115 |
330 |
120 |
330 |
|
3 |
43 |
1350 |
55 |
1150 |
63 |
1050 |
175 |
935 |
230 |
830 |
|
4 |
65 |
2500 |
83 |
2200 |
100 |
1850 |
330 |
1760 |
385 |
1660 |
|
6 |
190 |
5300 |
215 |
5290 |
265 |
4460 |
860 |
4405 |
1155 |
4100 |
|
8 |
300 |
10500 |
420 |
9600 |
480 |
8730 |
1410 |
8475 |
1935 |
8010 |
|
10 |
405 |
17500 |
598 |
16750 |
800 |
14250 |
2355 |
14250 |
3430 |
13310 |
|
12 |
585 |
26300 |
780 |
25500 |
1068 |
22550 |
3545 |
21430 |
5180 |
17070 |
|
14 |
805 |
31850 |
1100 |
30050 |
1130 |
28400 |
4435 |
26800 |
6300 |
24275 |
|
16 |
1214 |
43300 |
1480 |
41700 |
1580 |
38150 |
6260 |
36700 |
9120 |
33215 |
|
18 |
1410 |
57300 |
1685 |
55370 |
2180 |
50950 |
8970 |
48700 |
13020 |
43400 |
|
20 |
1719 |
74500 |
2440 |
72300 |
2780 |
65600 |
11380 |
62500 |
16500 |
55930 |
|
24 |
3180 |
112300 |
3610 |
109150 |
4880 |
98150 |
18960 |
94050 |
27500 |
84025 |
|
26 |
3770 |
116800 |
4810 |
111900 |
5830 |
103750 |
|
|
|
|
|
28 |
4635 |
136850 |
5920 |
131600 |
6940 |
122650 |
|
|
|
|
|
30 |
5370 |
167000 |
6740 |
155650 |
8560 |
143200 |
|
|
|
|
|
32 |
6960 |
182650 |
8080 |
173300 |
9940 |
160450 |
|
|
|
|
|
34 |
7950 |
207800 |
9260 |
197800 |
11570 |
181550 |
|
|
|
|
|
36 |
8950 |
233600 |
10280 |
219450 |
13530 |
199800 |
|
|
|
|
