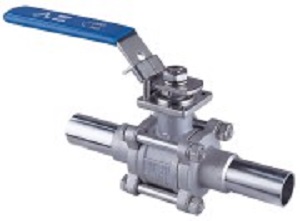

3-PC Extended Butt Weld End O.D. Tubing For Orbital Welding
Info:
Description
NOTES:
․Blowout-proof
stem
․Swing-Away body
for maintenance ease
․Welding ends to
ANSI B16.11B
|

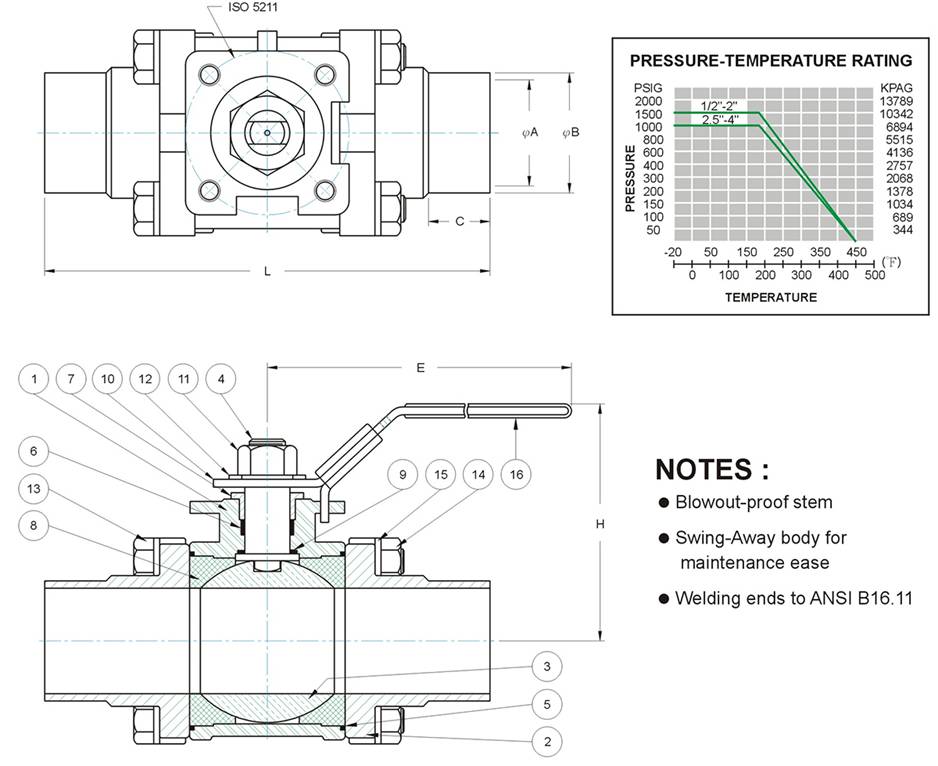

ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
BODY |
ASTM A351 CF8M |
|
2 |
END CAPS |
ASTM A351 CF8M |
|
3 |
BALL |
SUS 316 |
|
4 |
STEM |
SUS 316 |
|
5 |
JOINT GASKET |
PTFE |
|
6 |
STEM PACKING |
PTFE |
|
7 |
GLAND |
SUS 304 |
|
8 |
BALL SEAT |
PTFE |
|
9 |
STEM WASHER |
PTFE |
|
10 |
HANDLE |
SUS 304 |
|
11 |
HANDLE NUT |
SUS 304 |
|
12 |
HANDLE WASHER |
SUS 304 |
|
13 |
BODY BOLT |
SUS 304 |
|
14 |
CAP NUT |
SUS 304 |
|
15 |
WASHER |
SUS 304 |
|
16 |
HANDLE GRIP |
VINYL |
DIMENSIONS
|
Size |
A |
B |
C |
S |
H |
E |
ISO 5211 |
|
1/2 |
9.53 |
12.7 |
27 |
127 |
63 |
127 |
F03 |
|
3/4 |
15.88 |
19.05 |
27 |
127 |
66 |
127 |
F03 |
|
1 |
22.2 |
25.4 |
27 |
152.4 |
78 |
147 |
F04 |
|
1-1/4 |
31.7 |
31.7 |
27 |
152.4 |
83.5 |
147 |
F04 |
|
1-1/2 |
34.9 |
38.1 |
27 |
177.8 |
91.5 |
205 |
F05 |
|
2 |
47.5 |
50.8 |
27 |
203.2 |
99.7 |
205 |
F05 |
|
2-1/2 |
60.3 |
63.5 |
27 |
228.6 |
140 |
284 |
F07 |
|
3 |
73 |
76.2 |
27 |
254 |
149 |
284 |
F10 |
|
4 |
97.4 |
101.6 |
27 |
304.8 |
172 |
305 |
F10 |
