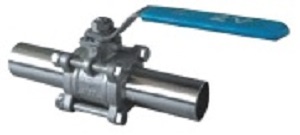

3-PC Extended Butt Weld End 5s & 10s For Orbital Welding
Info:
Description
NOTES:
․Blowout-proof
stem
․Swing-Away body
for maintenance ease
․Welding ends to
ANSI B16.11B
|

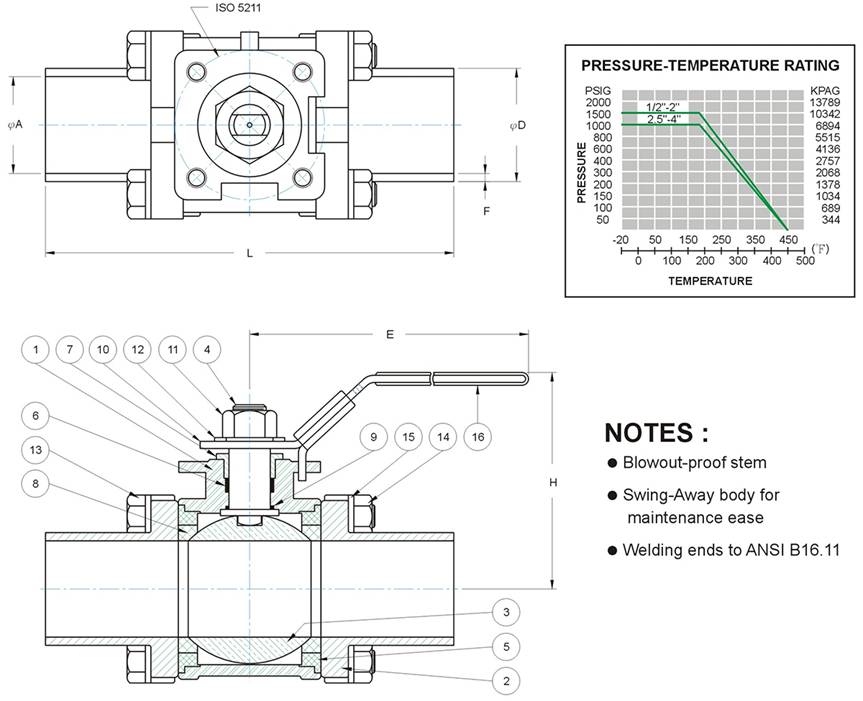

ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
BODY |
ASTM A351 CF8M |
|
2 |
END
CAPS |
ASTM A351 CF8M |
|
3 |
BALL |
SUS 316 |
|
4 |
STEM |
SUS 316 |
|
5 |
JOINT
GASKET |
PTFE |
|
6 |
STEM
PACKING |
PTFE |
|
7 |
GLAND |
SUS 304 |
|
8 |
BALL
SEAT |
PTFE |
|
9 |
STEM
WASHER |
PTFE |
|
10 |
HANDLE |
SUS 304 |
|
11 |
HANDLE
NUT |
SUS 304 |
|
12 |
HANDLE
WASHER |
SUS 304 |
|
13 |
BODY
BOLT |
SUS 304 |
|
14 |
CAP
NUT |
SUS 304 |
|
15 |
WASHER |
SUS 304 |
|
16 |
HANDLE
GRIP |
VINYL |
DIMENSIONS
|
Size |
A |
D |
L |
F |
H |
E |
ISO
5211 |
|
|
5S |
10S |
|||||||
|
1/2 |
15 |
21.7 |
150.7 |
1.65 |
2.1 |
55 |
133 |
F03 |
|
3/4 |
20 |
27.2 |
155.7 |
1.65 |
2.1 |
59 |
133 |
F03 |
|
1 |
25 |
34 |
186.2 |
1.65 |
2.8 |
70 |
153 |
F04 |
|
1-1/4 |
32 |
42.7 |
195.6 |
1.65 |
2.8 |
75 |
153 |
F04 |
|
1-1/2 |
38 |
48.6 |
231.6 |
1.65 |
2.8 |
84 |
190 |
F05 |
|
2 |
50 |
60.5 |
243.4 |
1.65 |
2.8 |
92 |
190 |
F05 |
|
2-1/2 |
65 |
76.3 |
290.2 |
2.1 |
3 |
128 |
247 |
F07 |
|
3 |
80 |
89.1 |
302.2 |
2.1 |
3 |
137 |
247 |
F10 |
|
4 |
100 |
114.3 |
326.2 |
2.1 |
3 |
173 |
295 |
F10 |
