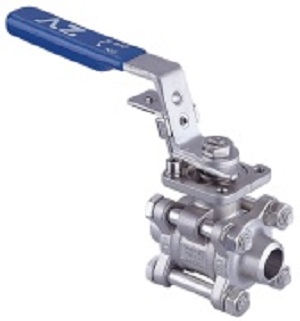

3-PC Extended Butt Weld End&Butt Weld End
Info:
Description
NOTES:
․Blowout-proof
stem
․Swing-Away body
for maintenance ease
․Welding ends to
ANSI B16.11B
|
ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
BODY |
ASTM A351 CF8M |
|
2 |
END
CAPS |
ASTM A351 CF8M |
|
3 |
BALL |
SUS316 |
|
4 |
STEM |
SUS316 |
|
5 |
JOINT
GASKET |
PTFE |
|
6 |
STEM
PACKING |
PTFE |
|
7 |
GLAND |
SUS604 |
|
8 |
BALL
SEAT |
PTFE |
|
9 |
STEM
WASHER |
PTFE |
|
10 |
HANDLE |
SUS 304 |
|
11 |
HANDLE
NUT |
SUS 304 |
|
12 |
HANDLE
WASHER |
SUS 304 |
|
13 |
BODY
BOLT |
SUS 304 |
|
14 |
CAP
NUT |
SUS 304 |
|
15 |
WASHER |
SUS 304 |
|
16 |
HANDLE
GRIP |
VINYL |

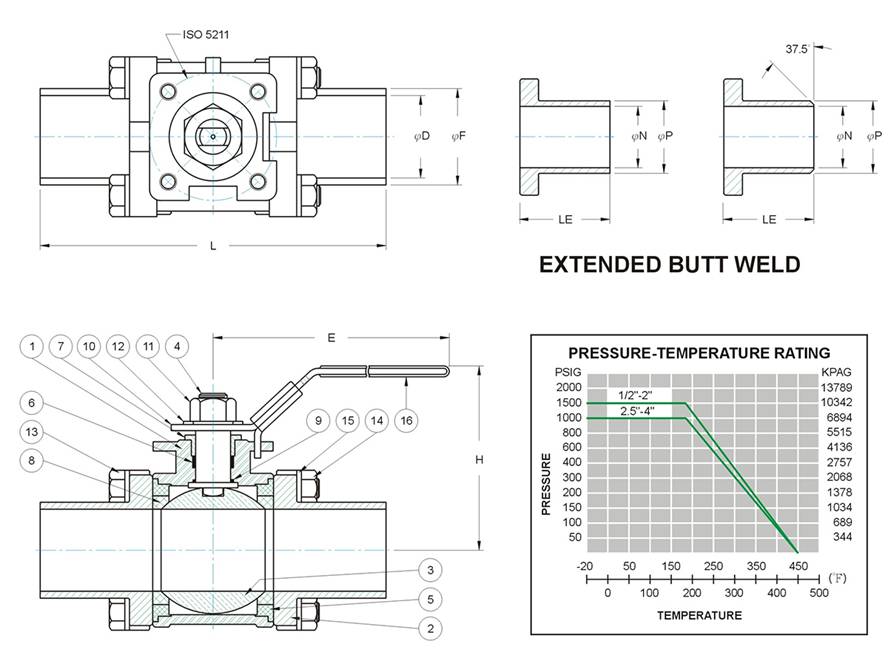

DIMENSIONS
|
Size |
D |
F |
N |
P |
L |
LE |
H |
E |
ISO
5211 |
|
1/2 |
17 |
22.7 |
15.6 |
21 |
69 |
225 |
72 |
135 |
F03 |
|
3/4 |
22.5 |
27.7 |
20.7 |
26.8 |
78 |
225 |
74 |
135 |
F03 |
|
1 |
26 |
33.5 |
25.8 |
34.4 |
84 |
244 |
92 |
150 |
F04 |
|
1-1/4 |
35 |
42.2 |
33.3 |
43.4 |
104 |
253 |
95 |
150 |
F04 |
|
1-1/2 |
41.5 |
48.8 |
40.5 |
49.8 |
119 |
258 |
109 |
188 |
F05 |
|
2 |
53 |
61 |
51.5 |
61 |
131 |
275 |
117 |
188 |
F05 |
|
2-1/2 |
69.8 |
77 |
66 |
77 |
190 |
332 |
147 |
289 |
F07 |
|
3 |
82 |
90 |
81 |
91 |
220 |
353 |
156 |
304 |
F10 |
|
4 |
105 |
115 |
101 |
115 |
270 |
360 |
178 |
304 |
F10 |
