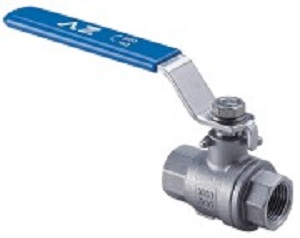

2-PC 1000WOG Threaded End
Info:
Description
|

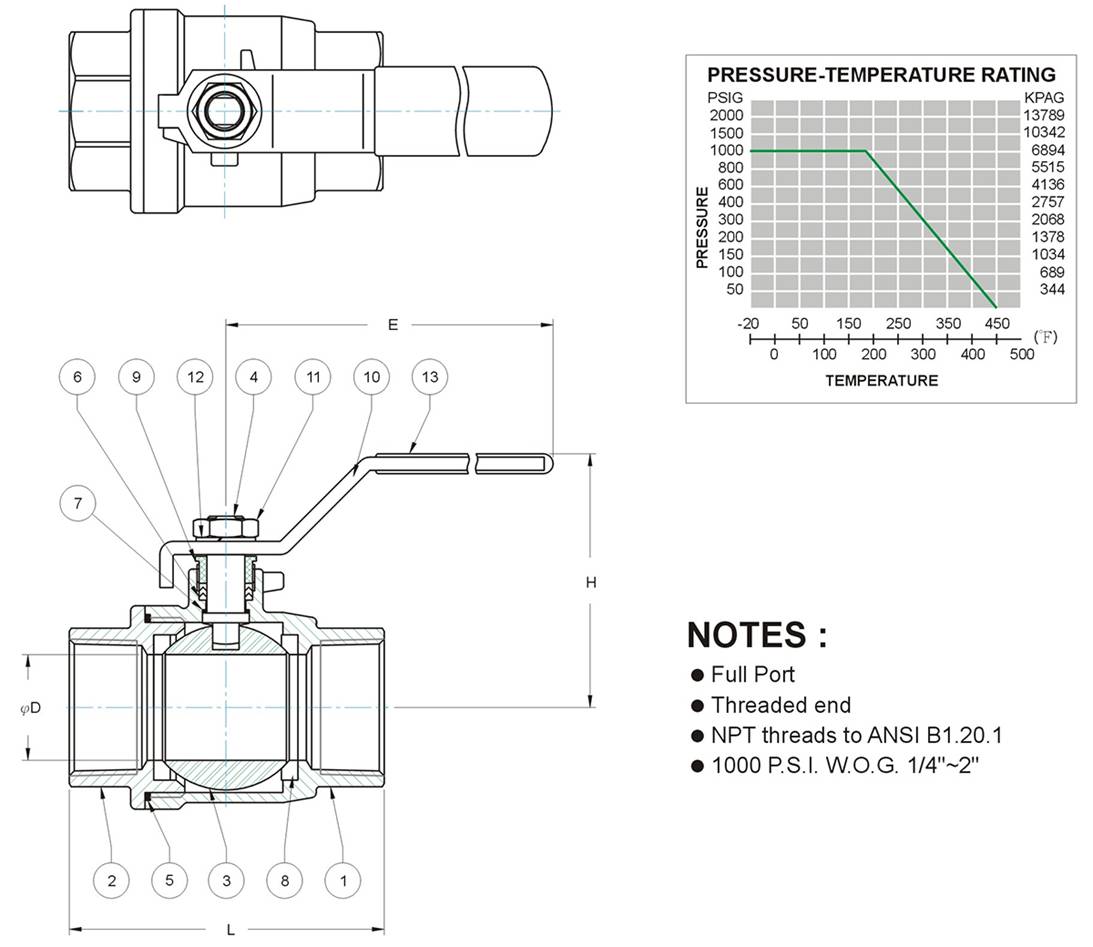

ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
BODY |
A351 CF8M |
|
2 |
END
CAP |
A351 CF8M |
|
3 |
BALL |
SUS 316 |
|
4 |
STEM |
SUS 316 |
|
5 |
BODY
GASKET |
PTFE |
|
6 |
STEM
PACKING |
PTFE |
|
7 |
STEM
SEAL |
PTFE |
|
8 |
BALL
SEAT |
PTFE |
|
9 |
GLAND
NUT |
SUS 304 |
|
10 |
HANDLE |
SUS 304 |
|
11 |
HANDLE
NUT |
SUS 304 |
|
12 |
WASHER |
SUS 304 |
|
13 |
HANDLE
GRIP |
VINYL |
DIMENSIONS
|
Size |
D |
E |
H |
L |
|
1/4 |
10.5 |
102 |
48 |
49.5 |
|
3/8 |
10.5 |
102 |
48 |
49.5 |
|
1/2 |
15 |
131 |
56 |
59 |
|
3/4 |
20 |
131 |
59 |
70 |
|
1 |
25 |
153 |
69 |
80 |
|
1-1/4 |
32 |
153 |
75 |
94.5 |
|
1-1/2 |
38 |
188 |
79 |
104 |
|
2 |
50 |
188 |
88 |
124 |
