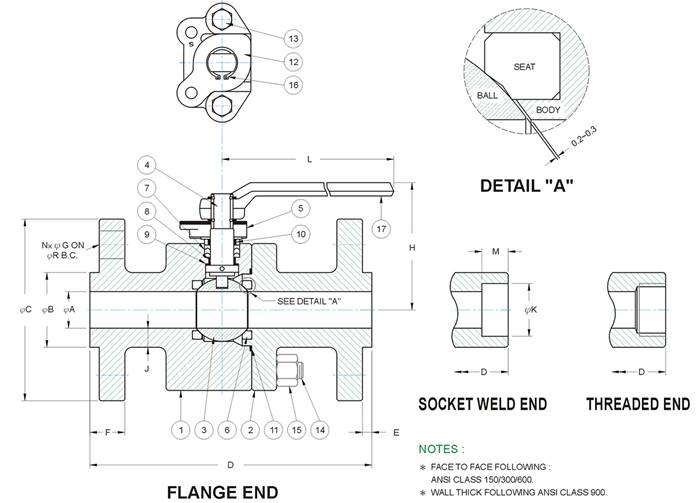

ITEM |
DESCRIPTION |
MATERIAL |
|
|
CF8M |
WCB |
||
|
1 |
Body |
ASTM A351 CF8M |
ASTM A216 WCB |
|
2 |
Closure |
ASTM A351 CF8M |
ASTM A216 WCB |
|
3 |
Ball |
ASTM A351 CF8M |
ASTM A351 CF8M |
|
4 |
Stem
S/A |
ASTM A276-316 |
ASTM A276-316 |
|
5 |
Gland |
ASTM A351 CF8 |
ASTM A351 CF8 |
|
6 |
Seat |
RPTEF/Peek |
RPTEF/Peek |
|
7 |
Stem
Packing |
PTFE/Graphite |
PTFE/Graphite |
|
8 |
Stem
Bearing |
PTFE/Graphite |
PTFE/Graphite |
|
9 |
Thrust
Washer |
PTFE/Graphite |
PTFE/Graphite |
|
10 |
Gland
Bushing |
PTFE/Graphite |
PTFE/Graphite |
|
11 |
Body
Gasket |
PTFE/Graphite |
PTFE/Graphite |
|
12 |
Lock
Plate |
Stainless Steel |
Stainless
Steel |
|
13 |
Gland
Bolt |
Stainless
Steel |
Carbon Steel |
|
14 |
Body
Stud |
ASTM A193 B8 |
ASTM A193 B7 |
|
15 |
Body
Nut |
ASTM A194 8A
or 8 |
ASTM A194 2H |
|
16 |
Snap
Ring |
Stainless
Steel |
Carbon Steel |
|
17 |
Handle |
Ductile Iron |
Ductile Iron |
CLASS150
|
Size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
R |
BOLT |
|
1/2 |
15 |
35 |
89 |
108 |
1.6 |
11.2 |
16 |
64.5 |
6.5 |
21.9 |
132 |
12 |
4 |
60.5 |
7/16” |
|
3/4 |
20 |
43 |
96 |
117 |
1.6 |
11.2 |
16 |
67.5 |
9 |
27.2 |
132 |
14 |
4 |
70 |
1/2” |
|
1 |
25 |
51 |
108 |
127 |
1.6 |
11.2 |
16 |
79 |
10 |
33.9 |
163 |
14 |
4 |
79.2 |
1/2” |
|
1-1/2 |
40 |
73 |
127 |
165 |
1.6 |
14.3 |
16 |
104 |
11 |
48.8 |
229 |
17 |
4 |
98.5 |
5/8” |
|
2 |
50 |
92 |
152 |
178 |
1.6 |
15.9 |
19 |
111 |
12 |
61.3 |
229 |
19 |
4 |
120.5 |
5/8” |
CLASS 300
|
Size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
R |
BOLT |
|
1/2 |
15 |
35 |
95 |
140 |
1.6 |
14.3 |
16 |
64.5 |
6.5 |
21.9 |
132 |
12 |
4 |
66.5 |
7/16” |
|
3/4 |
20 |
43 |
117 |
152 |
1.6 |
15.9 |
19 |
67.5 |
9 |
27.2 |
132 |
14 |
4 |
82.5 |
1/2” |
|
1 |
25 |
51 |
124 |
165 |
1.6 |
17.5 |
19 |
79 |
10 |
33.9 |
163 |
14 |
4 |
89 |
1/2” |
|
1-1/2 |
40 |
73 |
156 |
190 |
1.6 |
20.7 |
22 |
104 |
11 |
48.8 |
229 |
17 |
4 |
114.5 |
5/8” |
|
2 |
50 |
92 |
165 |
216 |
1.6 |
22.3 |
19 |
111 |
12 |
61.3 |
229 |
19 |
8 |
127 |
5/8” |
Class600
|
Size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
R |
BOLT |
|
1/2 |
15 |
35 |
95 |
165 |
6.4 |
20.9 |
16 |
64.5 |
6.5 |
21.9 |
132 |
12 |
4 |
66.5 |
7/16” |
|
3/4 |
20 |
43 |
117 |
190 |
6.4 |
22.3 |
19 |
67.5 |
9 |
27.2 |
132 |
14 |
4 |
82.5 |
1/2” |
|
1 |
25 |
51 |
124 |
216 |
6.4 |
23.9 |
19 |
79 |
10 |
33.9 |
163 |
14 |
4 |
89 |
1/2” |
|
1-1/2 |
40 |
73 |
156 |
241 |
6.4 |
28.7 |
22 |
104 |
11 |
48.8 |
229 |
17 |
4 |
114.5 |
5/8” |
|
2 |
50 |
92 |
165 |
292 |
6.4 |
31.8 |
19 |
142 |
12 |
61.3 |
229 |
19 |
8 |
127 |
5/8” |
