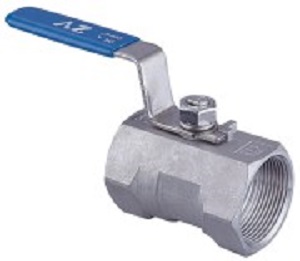

1-PC 1000WOG Threaded End
Info:
Description
|
ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
BODY |
A351 CF8M |
|
2 |
INSERT |
A351 CF8M |
|
3 |
BALL |
SUS 316 |
|
4 |
STEM |
SUS 316 |
|
5 |
BODY
GASKET |
PTFE |
|
6 |
STEM
PACKING |
PTFE |
|
7 |
STEM
SEAL |
PTFE |
|
8 |
BALL
SEAT |
PTFE |
|
9 |
BUSHING |
SUS 304 |
|
10 |
HANDLE |
SUS 304 |
|
11 |
STEM
NUT |
SUS 304 |
|
12 |
WASHER
|
SUS 304 |
|
13 |
HANDLE
GRIP |
VINYL |

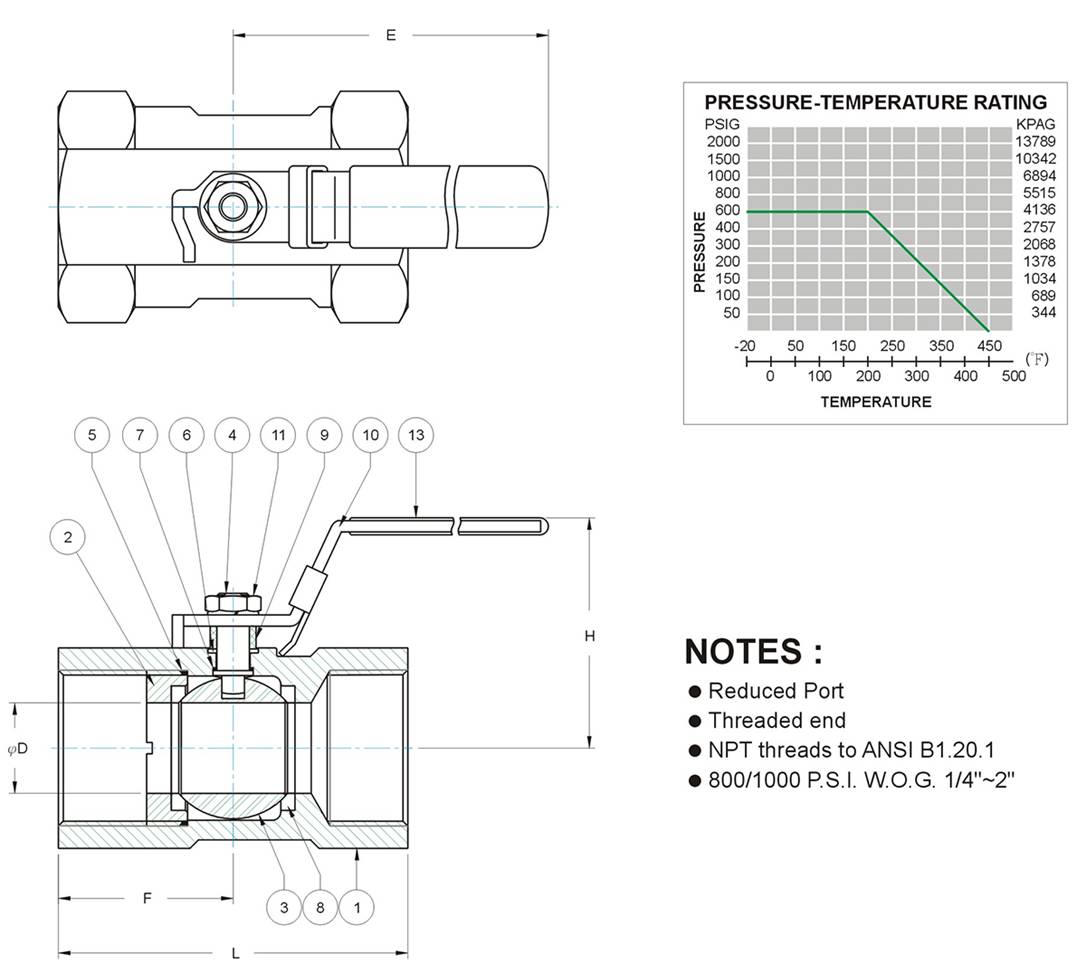

DIMENSIONS
|
Size |
D |
E |
F |
H |
L |
|
1/4 |
5 |
61 |
19 |
31 |
39 |
|
3/8 |
7 |
72 |
21 |
36 |
44 |
|
1/2 |
9.2 |
85 |
27.5 |
41 |
56.5 |
|
3/4 |
12.5 |
85 |
30 |
44 |
59 |
|
1 |
16 |
101 |
36 |
48 |
71 |
|
1-1/4 |
20 |
101 |
40 |
54 |
78 |
|
1-1/2 |
25 |
125 |
42.5 |
65 |
83 |
|
2 |
32 |
125 |
51 |
72 |
100 |
