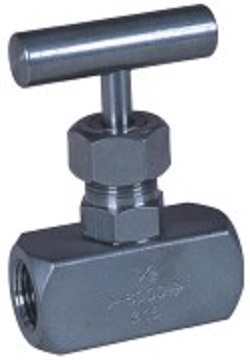

High Pressire Needle Valve Class 6000-10000PSI
Info:
Description
|
ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
SET
SCREW |
AISI 304S.S |
|
2 |
HANDLE |
AISI 410S.S |
|
3 |
STEM |
AISI 316S.S |
|
4 |
GLAND
NUT |
AISI 304S.S |
|
5 |
GLAND |
AISI 304S.S |
|
6 |
PACKING |
PTFE |
|
7 |
BONNET |
CF8M /*316S.S. |
|
8 |
BODY |
CF8M
/*316S.S./A105 |

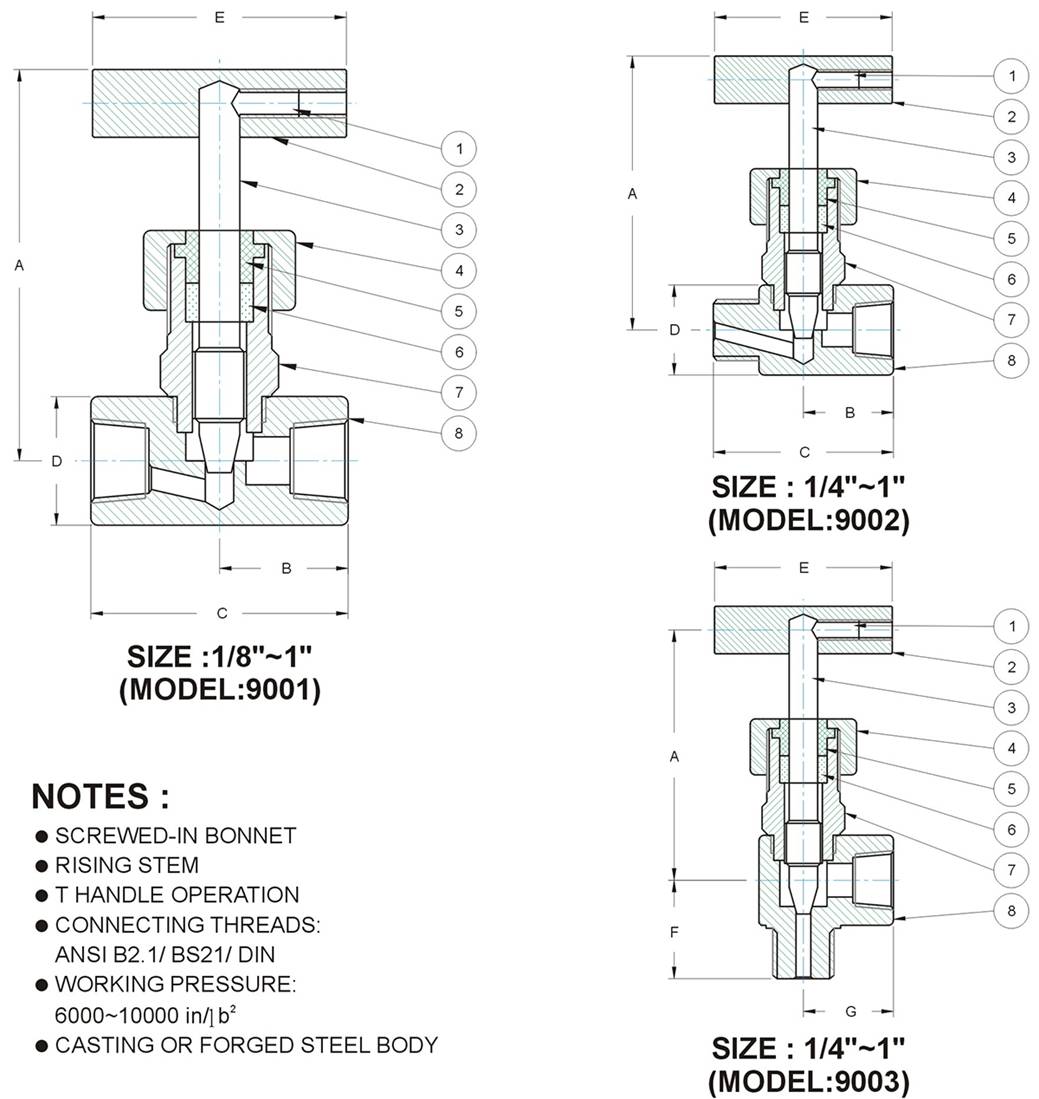

DIMENSIONS
|
Size |
A |
B |
C |
D |
E |
F |
G |
|
1/8 |
75 |
29 |
58 |
25 |
50 |
- |
- |
|
1/4 |
75 |
29 |
58 |
25 |
50 |
29 |
29 |
|
3/8 |
75 |
29 |
58 |
25 |
50 |
29 |
29 |
|
1/2 |
87 |
32.5 |
65 |
30 |
60 |
34 |
34 |
|
1/2 |
87 |
32.5 |
65 |
30 |
60 |
34 |
34 |
|
3/4 |
90 |
35 |
70 |
35 |
60 |
38 |
38 |
|
1 |
103 |
40 |
80 |
45 |
80 |
45 |
45 |
