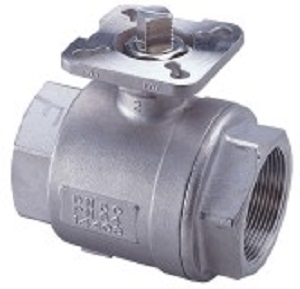

2-PC 1000WOG ISO 5211 Direct Mount Pad Threaded End
Info:
Description
|
ITEM |
DESCRIPTION |
MATERIAL |
|
|
1 |
BODY |
CF8B |
WCB |
|
2 |
END
CAP |
CF8M |
WCB |
|
3 |
BALL |
SUS 316 |
|
|
4 |
STEM |
SUS 316 |
|
|
5 |
BODY
GASKET |
PTFE |
|
|
6 |
STEM
PACKING |
PTFE |
|
|
7 |
BUSHING |
PTFE |
|
|
8 |
BALL
SEAT |
PTFE |
|
|
9 |
STEM
SEAL |
PTFE |
|
|
10 |
O-RING |
VITON |
|
|
11 |
GLAND |
SUS 304 |
|
|
12 |
STEM
NUT |
SUS 304 |
|
|
13 |
BELLEVILLE
WASHER |
SUS 301 |
|

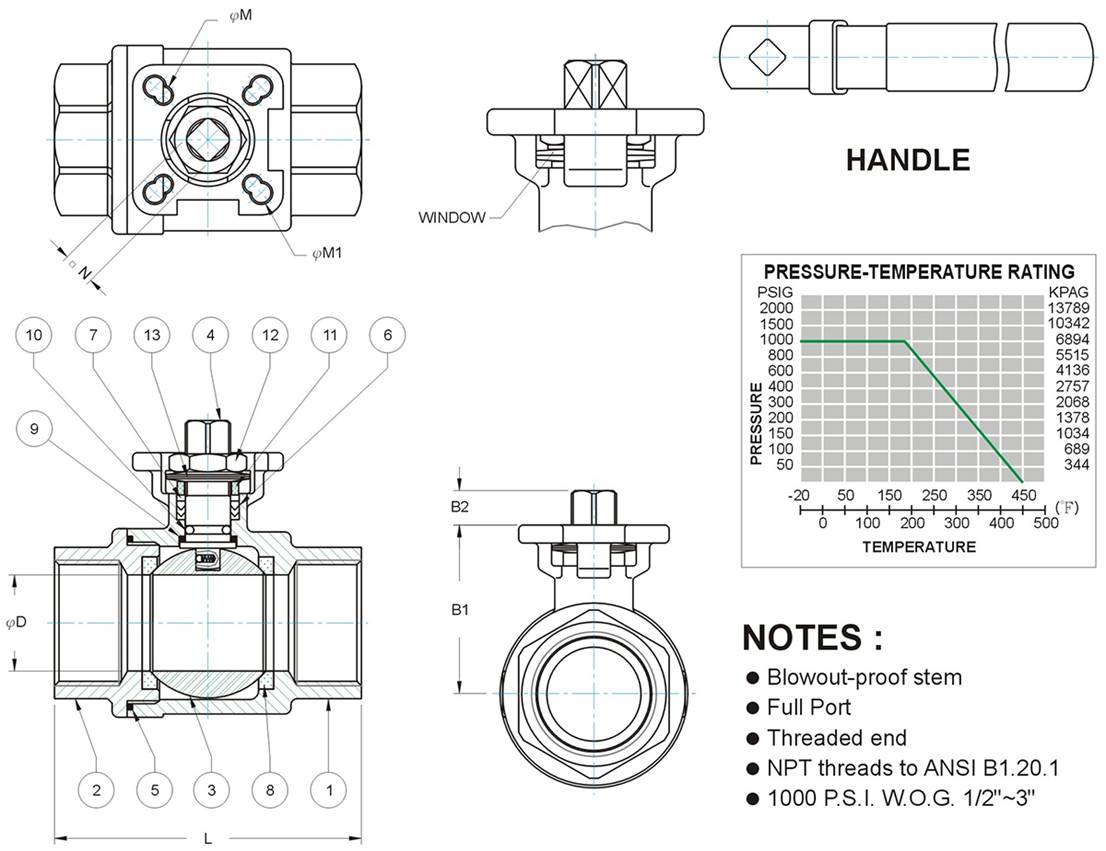

DIMENSIONS
|
Size |
B1 |
B2 |
D |
L |
N |
M |
M1 |
ISO05211 |
|
1/2 |
35.8 |
9 |
15 |
65.3 |
9 |
5.5 |
5.5 |
F05 F07 |
|
3/4 |
38.8 |
9 |
20 |
75.5 |
9 |
5.5 |
5.5 |
F07 F10 |
|
1 |
52 |
11 |
25 |
88.7 |
11 |
5.5 |
65 |
F04 F05 |
|
1-1/4 |
56.8 |
11 |
32 |
101.4 |
11 |
5.5 |
6.5 |
F03 F04 |
|
1-1/2 |
65.7 |
15.5 |
38 |
109.3 |
14 |
6.5 |
8.5 |
F03 F04 |
|
2 |
73.9 |
15.5 |
50 |
124 |
14 |
6.5 |
8.5 |
F05 F07 |
|
2-1/2 |
93 |
17 |
65 |
159.3 |
17 |
9 |
11 |
F04 F05 |
|
3 |
102 |
17 |
80 |
175.3 |
17 |
9 |
11 |
F07 F10 |
