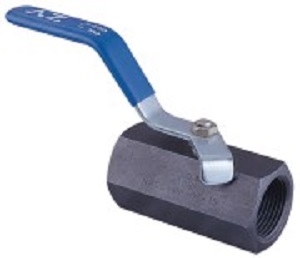

1-PC 2000WOG Threaded End
Info:
Description
|
ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
BODY |
A108 Gr.1020 |
|
2 |
BALL |
S.S 304 A276 |
|
3 |
STEM |
S.S 304 A276 |
|
4 |
PACKING
BUSHONG |
S.S 304 A276 |
|
5 |
HANDLE
GRIP |
VINYL |
|
6 |
SEAT
RETAINER |
A108 Gr.1020 |
|
7 |
GASKET |
PTFER |
|
8 |
THRUST
WASHER |
PTFE |
|
9 |
STEM
PACKING |
PTFE |
|
10 |
HANDLE |
C.S.PLATED |
|
11 |
STEM
NUT |
C.S.PLATED |
|
12 |
BALL
SEAT |
RPTFE |
|
13 |
SPRING
WASHER |
S.S.304 A276 |
|
14 |
BELLEVILLE
WASHER |
S.S.301 |
|
15 |
STEM
WASHER |
S.S.304 A276 |

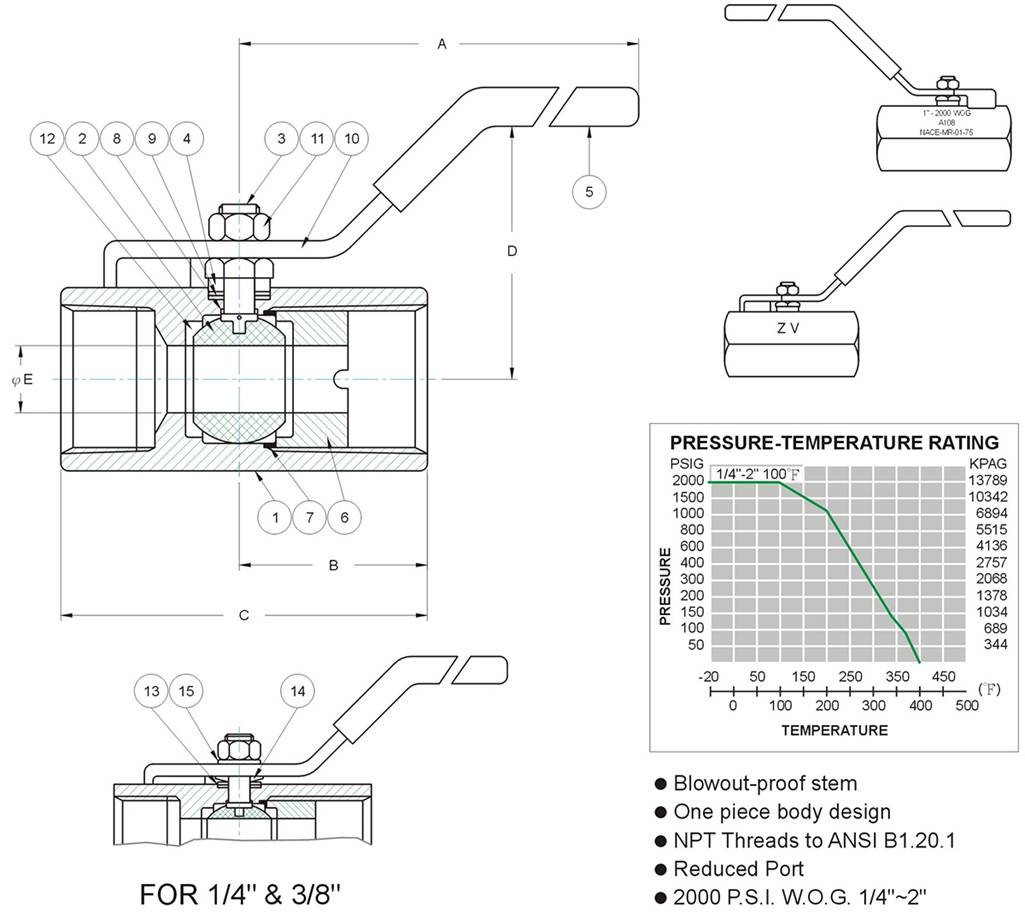

DIMENSIONS
|
Size |
A |
B |
C |
D |
E |
Cv |
WEIGHTS |
|
1/4 |
66.3 |
23.9 |
43.1 |
29.1 |
4.6 |
1.5 |
0.078 Kg |
|
3/8 |
80 |
26.1 |
47.4 |
33.4 |
6.8 |
3.5 |
0.120 Kg |
|
1/2 |
109 |
33 |
61.7 |
54.4 |
9.2 |
5.7 |
0.315 Kg |
|
3/4 |
109.5 |
37.3 |
69.9 |
59.2 |
12.5 |
10 |
0.460 Kg |
|
1 |
122 |
44.5 |
85.7 |
62.2 |
16 |
16 |
0.690 Kg |
|
1-1/4 |
147.5 |
48.6 |
93.7 |
68 |
20 |
25 |
1.360 Kg |
|
1-1/2 |
147.5 |
52.6 |
101.6 |
69 |
24.7 |
40 |
1.590Kg |
|
2 |
154 |
57.7 |
114.3 |
81.9 |
32 |
62 |
2.700 Kg |
