ITEM |
DESCRIPTION |
MATERIAL |
|
|
CF8M |
WCB |
||
|
1 |
Body |
ASTM A351 CF8M |
ASTM A216 WCB |
|
2 |
Insert |
ASTM A351 CF8M |
ASTM A216 WCB |
|
3 |
Ball |
ASTM A351 CF8M |
ASTM A351 CF8M |
|
4 |
Extension
Stem |
ASTM A276-316 |
ASTM A276-316 |
|
5 |
Gland |
ASTM A351 CF8 |
ASTM A351 CF8 |
|
6 |
Seat |
RPTEF/Peek |
RPTEF/Peek |
|
7 |
Stem
Bearing |
PTFE/Graphite |
PTFE/Graphite |
|
8 |
Thrust
Washer |
PTFE/Graphite |
PTFE/Graphite |
|
9 |
Gland
Bushing |
PTFE/Graphite |
PTFE/Graphite |
|
10 |
Stem
Packing |
PTFE/Graphite |
PTFE/Graphite |
|
11 |
Body
Gasket |
PTFE/Graphite |
PTFE/Graphite |
|
12 |
Extension
Gasket |
PTFE/Graphite |
PTFE/Graphite |
|
13 |
Lock
Plate |
Stainless
Steel |
Stainless
Steel |
|
14 |
Extension
Bolt |
Stainless
Steel |
Carbon Steel |
|
15 |
Gland
Bolt |
Stainless
Steel |
Carbon Steel |
|
16 |
Mounting
Pad |
Stainless
Steel |
Stainless
Steel |
|
17 |
Worm
Gear |
Commercial |
Commercial |
|
18 |
Handle
Wheel |
Carbon Steel |
Carbon Steel |
|
19 |
Handle
Adapter |
Ductile Iron |
Ductile Iron |
|
20 |
Handle |
Ductile Iron |
Ductile Iron |

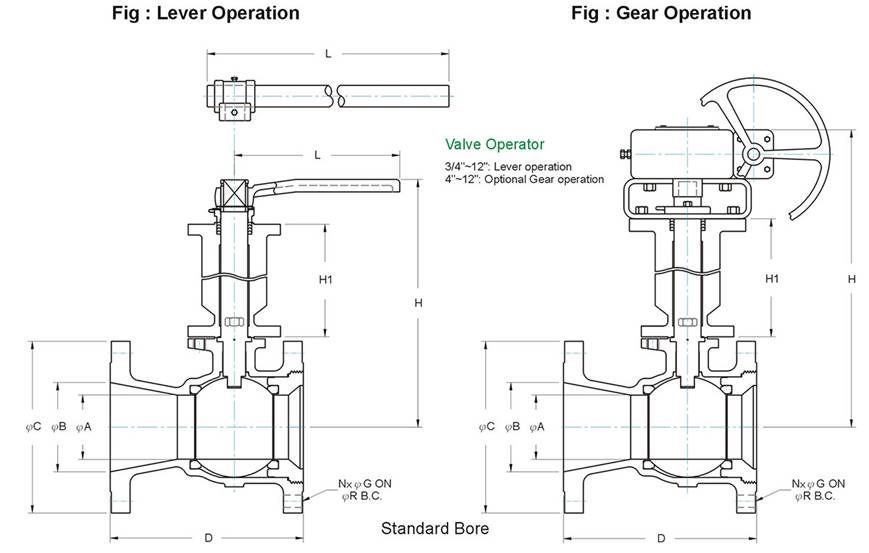

CLASS150
|
Valve Size |
Bore A |
APPROXIMATE
DIMENSON IN MM |
||||||||
|
B |
C |
D |
H |
H1 |
N |
G |
R |
L |
||
|
3/4 |
15 |
20 |
98.5 |
117 |
159 |
100 |
4 |
16 |
70 |
132 |
|
1 |
20 |
25 |
108 |
127 |
166 |
100 |
4 |
16 |
7902 |
132 |
|
1-1/2 |
30 |
38 |
127 |
165 |
184 |
100 |
4 |
16 |
96.5 |
165 |
|
2 |
38 |
50 |
152.4 |
177.8 |
204 |
100 |
4 |
19 |
120.6 |
229 |
|
3 |
58 |
76 |
190 |
203 |
342 |
200 |
4 |
19 |
152.5 |
404 |
|
4 |
76 |
102 |
228 |
229 |
360 |
200 |
8 |
19 |
190.5 |
404 |
|
6 |
114 |
152 |
279 |
267 |
408 |
200 |
8 |
22 |
241.5 |
445 |
|
8 |
151 |
203 |
343 |
292 |
452 |
200 |
8 |
22 |
298.5 |
1143 |
|
10 |
186 |
254 |
406 |
330 |
489 |
200 |
12 |
25 |
362 |
1524 |
|
12 |
227 |
302 |
483 |
356 |
534 |
200 |
12 |
25 |
431.8 |
GEAR |
CLASS 300
|
Valve Size |
Bore A |
APPROXIMATE
DIMENSON IN MM |
||||||||
|
B |
C |
D |
H |
H1 |
N |
G |
R |
L |
||
|
1 |
20 |
25 |
124 |
165 |
166 |
100 |
4 |
19 |
89 |
132 |
|
1-1/2 |
30 |
38 |
155 |
190.5 |
184 |
100 |
4 |
22 |
114.5 |
163 |
|
2 |
38 |
50 |
165 |
216 |
204 |
100 |
8 |
19 |
127 |
229 |
|
3 |
58 |
76 |
209.6 |
282.6 |
342 |
200 |
8 |
22 |
165 |
404 |
|
4 |
76 |
102 |
254 |
304.8 |
360 |
200 |
8 |
22 |
200 |
404 |
|
6 |
114 |
152 |
318 |
403.3 |
408 |
200 |
12 |
22 |
270 |
445 |
|
8 |
152 |
203 |
381 |
419.1 |
452 |
200 |
12 |
25 |
330 |
1143 |
