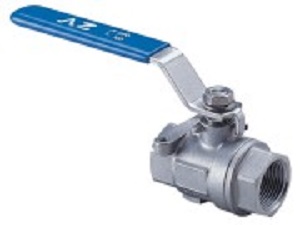

2-PC 2000WOG Threaded End
Info:
Description
|
ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
BODY |
A351 CF8M |
|
2 |
END
CAP |
A351 CF8M |
|
3 |
BALL |
SUS 316 |
|
4 |
STEM |
SUS 316 |
|
5 |
BODY
GASKET |
PTFE |
|
6 |
STEM
PACKING |
PTFE |
|
7 |
STEM
SEAL |
PTFE |
|
8 |
BALL
SEAT |
PTFE |
|
9 |
GLAND
NUT |
SUS 304 |
|
10 |
HANDLE |
SUS 304 |
|
11 |
HANDLE
NUT |
SUS 304 |
|
12 |
WASHER |
SUS 304 |
|
13 |
HANDLE
GRIP |
VINYL |

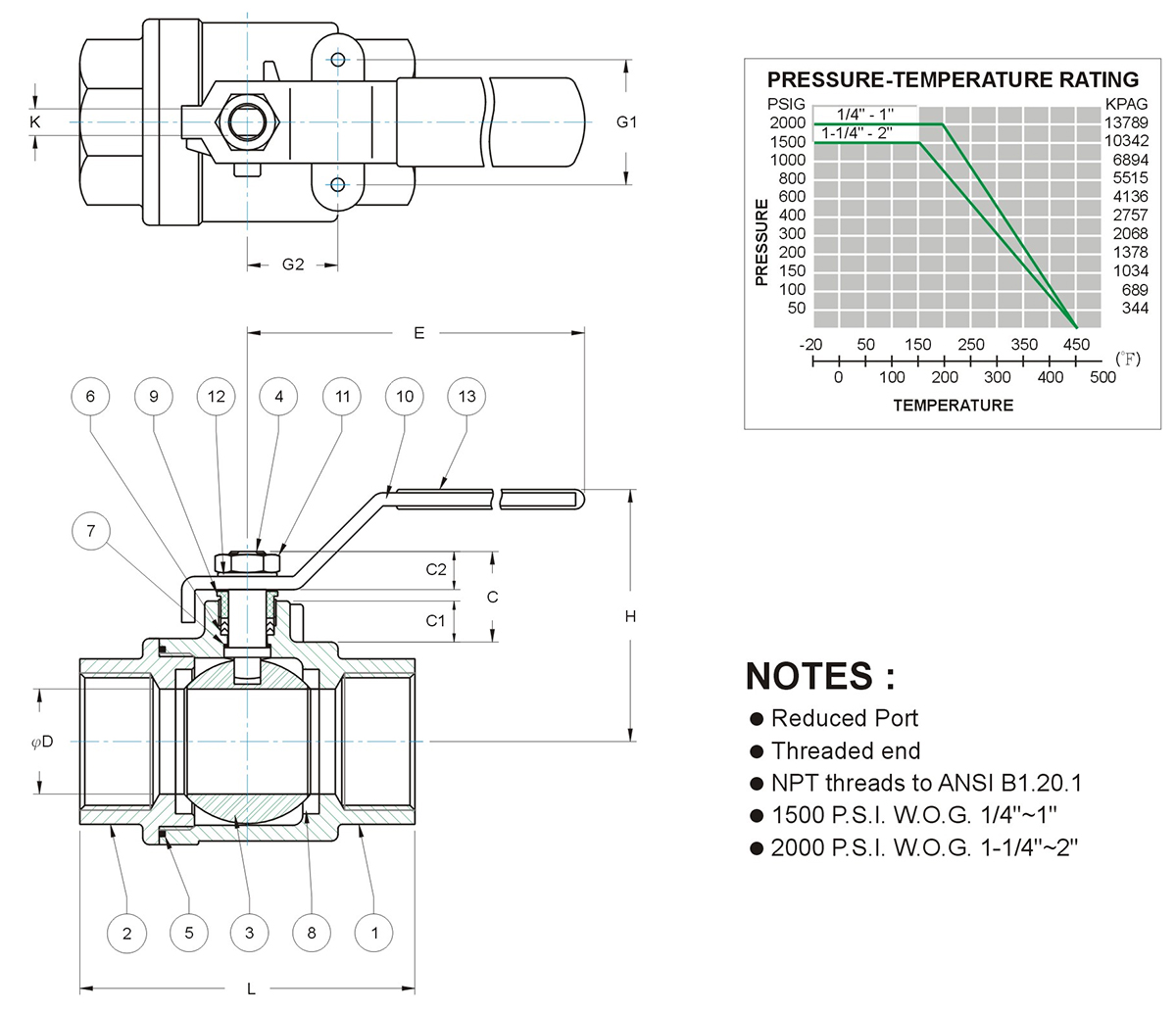

DIMENSIONS
|
Size |
C |
C1 |
C2 |
D |
E |
H |
K |
L |
G1 |
G2 |
|
1/4 |
17 |
6.7 |
7.8 |
9.5 |
108 |
51 |
5 |
52 |
28 |
12.7 |
|
3/8 |
17 |
6.7 |
7.8 |
9.5 |
108 |
51 |
5 |
52 |
28 |
12.7 |
|
1/2 |
23 |
7.9 |
11 |
12.7 |
108 |
54 |
5 |
62 |
28 |
12.7 |
|
3/4 |
24.8 |
10.1 |
11 |
15 |
133 |
55 |
6.3 |
69 |
35 |
22.4 |
|
1 |
24 |
9.3 |
11 |
20 |
133 |
59 |
6.3 |
84 |
35 |
22.4 |
|
1-1/4 |
30.6 |
11.4 |
14.8 |
25 |
153 |
70 |
8 |
90 |
38.1 |
25.4 |
|
1-1/2 |
29 |
10.9 |
14.8 |
32 |
153 |
75 |
8 |
104 |
38.1 |
25.4 |
|
2 |
32.5 |
11.5 |
16 |
38 |
190 |
84 |
9.5 |
117 |
38.1 |
25.4 |
