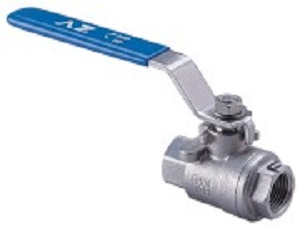

2-PC 1000WOG Threaded End
Info:
Description
|
ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
BODY |
A351 CF8M |
|
2 |
END
CAP |
A351 CF8M |
|
3 |
BALL |
SUS 316 |
|
4 |
STEM |
SUS 316 |
|
5 |
BODY
GASKET |
PTFE |
|
6 |
STEM
PACKING |
PTFE |
|
7 |
STEM
SEAL |
PTFE |
|
8 |
BALL
SEAT |
PTFE |
|
9 |
GLAND
NUT |
SUS 304 |
|
10 |
HANDLE |
SUS 304 |
|
11 |
HANDLE
NUT |
SUS 304 |
|
12 |
WASHER |
SUS 304 |
|
13 |
HANDLE
GRIP |
VINYL |

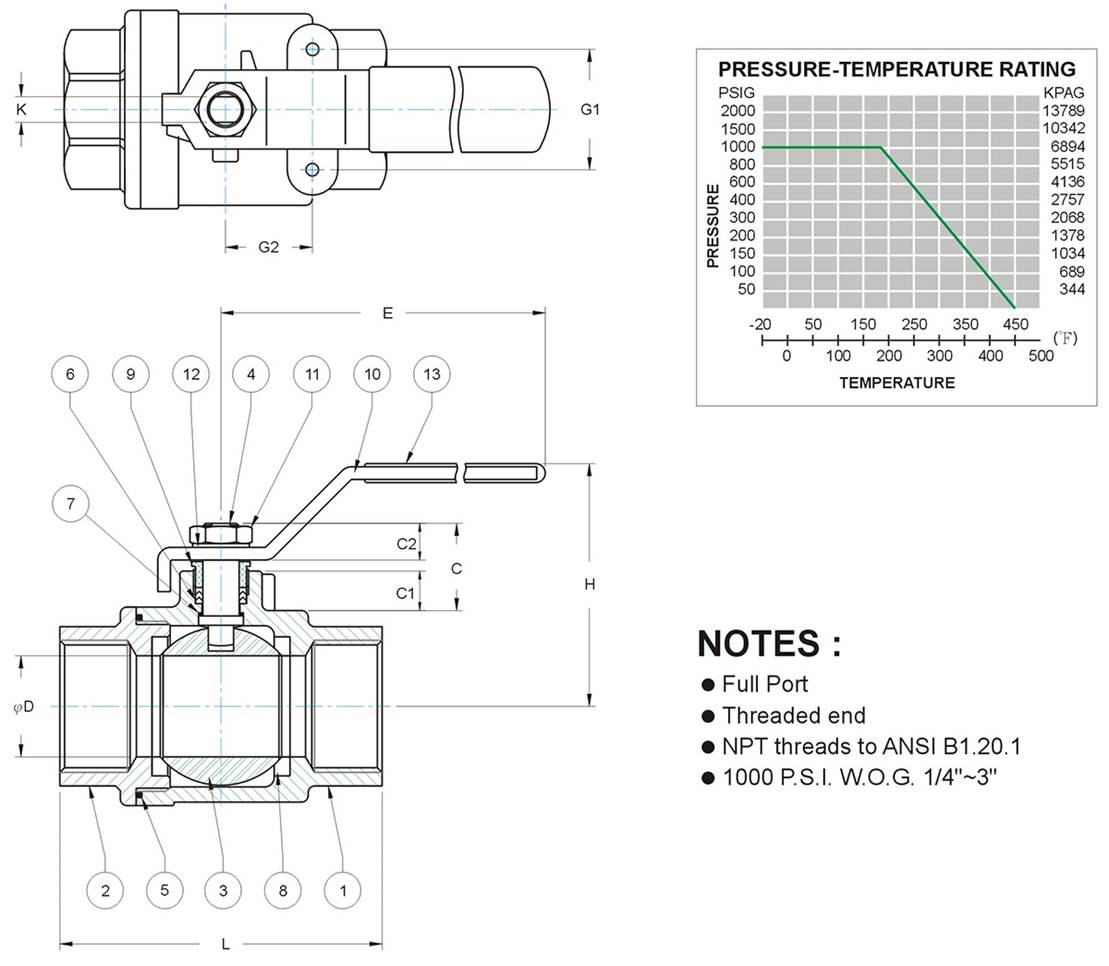

DIMENSIONS
|
Size |
C |
C1 |
C2 |
D |
E |
H |
K |
L |
G1 |
G2 |
|
1/4 |
23.5 |
8.3 |
11 |
11.6 |
108 |
54 |
5 |
55.2 |
28 |
12.7 |
|
3/8 |
23.5 |
8.3 |
11 |
12.5 |
108 |
54 |
5 |
55.2 |
28 |
12.7 |
|
1/2 |
24.7 |
9.8 |
11 |
15 |
133 |
55 |
6.3 |
65.3 |
28 |
12.7 |
|
3/4 |
25.5 |
10.7 |
11 |
20 |
133 |
59 |
6.3 |
75.5 |
35 |
22.4 |
|
1 |
30.4 |
11.6 |
14.8 |
25 |
153 |
70 |
8 |
88.7 |
35 |
22.4 |
|
1-1/4 |
29.7 |
11.1 |
14.8 |
32 |
153 |
75 |
8 |
101.4 |
38.1 |
25.4 |
|
1-1/2 |
33 |
12 |
16 |
38 |
190 |
84 |
9.5 |
109.3 |
38.1 |
25.4 |
|
2 |
33 |
12 |
16 |
38 |
190 |
84 |
9.5 |
109.3 |
38.1 |
25.1 |
|
2-1/2 |
48.5 |
15.7 |
23 |
65 |
247 |
128 |
12 |
159.3 |
55 |
35 |
|
3 |
47.5 |
14 |
23 |
80 |
247 |
137 |
12 |
175.3 |
55 |
35 |
