3-PC Socket Weld & Threaded End
內容:
產品說明
|
ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
BODY |
ASTM A351 CF8M |
|
2 |
END
CAPS |
ASTM A351 CF8M |
|
3 |
BALL |
SUS 316 |
|
4 |
STEM |
SUS 316 |
|
5 |
BODY
GASKET |
PTFE |
|
6 |
STEM
PACKING |
PTFE |
|
7 |
GLAND |
SUS 304 |
|
8 |
BALL
SEAT |
PTFE |
|
9 |
THRUST
WASHER |
PTFE |
|
10 |
HANDLE |
SUS 304 |
|
11 |
HANDLE
NUT |
SUS 304 |
|
12 |
HANDLE
WASHER |
SUS 304 |
|
13 |
LOCKING
PLATE |
SUS 304 |
|
14 |
BODY
BOLT |
SUS 304 |
|
15 |
CAP
NUT |
SUS 304 |
|
16 |
WASHER |
SUS 304 |
|
17 |
HANDLE
GRIP |
VINYL |

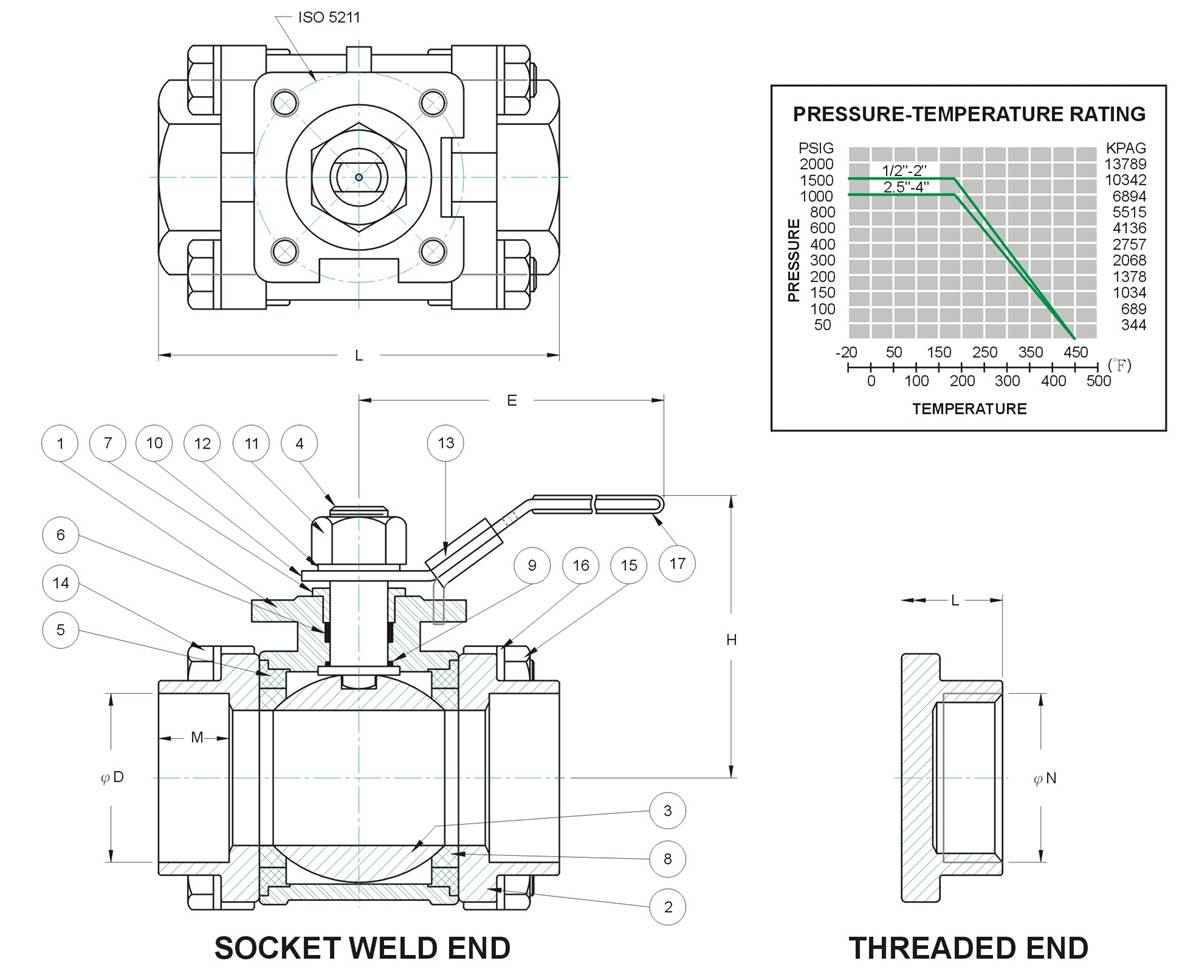

DIMENSIONS
|
Size |
D |
N |
L |
M |
H |
E |
ISO
5211 |
|
1/4 |
14.2 |
NPT or PT or PF or DIN 2999 |
60 |
11 |
72 |
135 |
F03 |
|
3/8 |
17.7 |
60 |
11 |
72 |
135 |
F03 |
|
|
1/2 |
21.9 |
69 |
12 |
72 |
135 |
F03 |
|
|
3/4 |
27.2 |
78 |
14 |
74 |
135 |
F03 |
|
|
1 |
33.9 |
84 |
14 |
83 |
150 |
F04 |
|
|
1-1/4 |
42.7 |
104 |
15 |
98 |
150 |
F04 |
|
|
1-1/2 |
48.8 |
119 |
17 |
109 |
188 |
F05 |
|
|
2 |
61.3 |
131 |
19 |
117 |
188 |
F05 |
|
|
2-1/2 |
74 |
185 |
21 |
147 |
289 |
F07 |
|
|
3 |
90 |
205 |
25 |
156 |
304 |
F10 |
|
|
4 |
115.8 |
230 |
30 |
178 |
304 |
F10 |
