DESCRIPTION |
MATERIAL |
|
|
CF8M |
WCB |
|
|
Body |
ASTM A351 CF8M |
ASTM A216 WCB |
|
Closure |
ASTM A351 CF8M |
ASTM A216 WCB |
|
Stem S/A |
ASTM A276-316 |
ASTM A276-316 |
|
Ball |
ASTM A351 CF8M |
ASTM A351 CF8M |
|
Seat |
RPTEF/Peek |
RPTEF/Peek |
|
Stem
Pscking |
PTFE/Graphile |
PTFE/Graphile |
|
Stem
Bearing |
PTFE/Graphile |
PTFE/Graphile |
|
Thrust
Washer |
PTFE/Graphile |
PTFE/Graphile |
|
Gland |
ASTM A351 CF8 |
ASTM A351 CF8 |
|
Gland
Bushing |
PTFE/Graphile |
PTFE/Graphile |
|
Body
Gasket |
PTFE/Graphile |
PTFE/Graphile |
|
Body Stud |
ASTM A193 B8 |
ASTM A193 B7 |
|
Bodu Nut |
ASTM A194 8A or 8 |
ASTM A194 2H |
|
Gland
Bolt |
Stainless Steel |
Carbon Steel |
|
Handle |
Commercial |
Ductile Iron |
|
Lock
Plate |
Stainless Steel |
Stainless Steel |
|
Worm Gear |
Commercial |
Commercial |

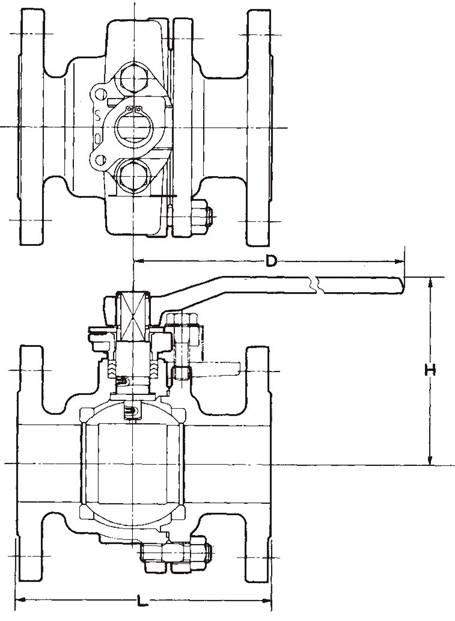

Dimensions of 2010-150# / S-10K
|
Valve Size |
in |
1/2 |
3/4 |
1 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
mm |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
|
Bore |
in |
0.5 |
0.75 |
1 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
|
mm |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
|
|
L |
in |
4.25 |
4.6 |
5.0 |
6.5 |
7.0 |
7.5 |
8.0 |
9.0 |
14.0 |
15.5 |
18.0 |
21.0 |
24.0 |
27.0 |
|
mm |
108 |
117 |
127 |
165 |
178 |
190 |
203 |
229 |
356 |
394 |
457 |
533 |
610 |
686 |
|
|
H |
in |
2.5 |
2.6 |
3.1 |
4.1 |
4.4 |
4.8 |
6.3 |
7.7 |
8.3 |
10.0 |
12.0 |
14.2 |
16.5 |
17.8 |
|
mm |
64.5 |
67.5 |
79.0 |
104 |
111 |
123 |
157 |
195 |
212 |
253 |
304 |
374 |
420 |
452 |
|
|
D |
In |
5.2 |
5.2 |
6.4 |
9.0 |
9.0 |
9.5 |
15.9 |
17.5 |
17.5 |
45.0 |
60.0 |
N/A |
N/A |
N/A |
|
mm |
132 |
132 |
163 |
229 |
229 |
229 |
404 |
445 |
445 |
1143 |
1524 |
Gear |
Gear |
Gear |
Dimensions of 2030-300# / JIS-20K
|
Valve Size |
in |
1/2 |
3/4 |
1 |
1.25 |
1.5 |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
|
mm |
15 |
20 |
25 |
32 |
40 |
50 |
80 |
100 |
150 |
200 |
250 |
300 |
|
|
Bore |
in |
0.5 |
0.75 |
1 |
1.25 |
1.5 |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
|
mm |
15 |
20 |
25 |
32 |
40 |
50 |
80 |
100 |
150 |
200 |
250 |
300 |
|
|
L |
in |
5.5 |
6.0 |
6.5 |
7.0 |
7.5 |
8.5 |
11.1 |
12.0 |
15.9 |
19.8 |
22.4 |
25.5 |
|
mm |
140 |
152 |
165 |
178 |
190 |
216 |
282 |
305 |
403 |
502 |
569 |
648 |
|
|
H |
in |
2.5 |
2.6 |
3.1 |
4.1 |
4.1 |
4.4 |
6.3 |
7.7 |
10.0 |
12.0 |
14.2 |
16.5 |
|
mm |
64.5 |
67.5 |
79 |
104 |
104 |
111 |
157 |
195 |
253 |
304 |
374 |
420 |
|
|
D |
In |
5.2 |
5.2 |
6.4 |
6.4 |
9.0 |
9.0 |
15.9 |
17.5 |
45.0 |
60.0 |
N/A |
N/A |
|
Mm |
132 |
132 |
165 |
165 |
229 |
229 |
404 |
445 |
1143 |
1524 |
Gear |
Gear |
Dimensions of 2060-600# / JIS-40K
|
Valve Size |
in |
1/2 |
3/4 |
1 |
1.5 |
2 |
3 |
4 |
6 |
|
mm |
15 |
20 |
25 |
40 |
50 |
80 |
100 |
150 |
|
|
Bore |
in |
0.5 |
0.75 |
1 |
1.5 |
2 |
3 |
4 |
6 |
|
mm |
15 |
20 |
25 |
40 |
50 |
80 |
100 |
150 |
|
|
L |
in |
6.5 |
7.5 |
8.5 |
9.5 |
11.5 |
14.0 |
17.0 |
22.0 |
|
mm |
165 |
190 |
216 |
241 |
292 |
356 |
432 |
559 |
|
|
H |
in |
2.5 |
2.6 |
3.1 |
4.1 |
5.6 |
7.2 |
8.7 |
7.2 |
|
mm |
64.5 |
67.5 |
79 |
104 |
142 |
182 |
222 |
182 |
|
|
D |
In |
5.2 |
5.2 |
6.4 |
9.0 |
15.9 |
17.5 |
45.0 |
17.5 |
|
Mm |
132 |
132 |
163 |
229 |
404 |
445 |
1143 |
445 |
