ITEM |
DESCRIPTION |
MATERIAL |
|
|
CF8M |
WCB |
||
|
1 |
Body |
ASTM A351 CF8M |
ASTM A216 WCB |
|
2 |
Closure |
ASTM A351 CF8M |
ASTM A216 WCB |
|
3 |
Ball |
ASTM A351 CF8M |
ASTM A351 CF8M |
|
4 |
Stem S/A |
ASTM A276-316 |
ASTM A276-316 |
|
5 |
Gland |
ASTM A351 CF8 |
ASTM A351 CF8 |
|
6 |
Seat |
RPTEF/Peek |
RPTEF/Peek |
|
7 |
Stem Packing |
PTFE/Graphite |
PTFE/Graphite |
|
8 |
Stem Bearing |
PTFE/Graphite |
PTFE/Graphite |
|
9 |
Thrust
Washer |
PTFE/Graphite |
PTFE/Graphite |
|
10 |
Gland
Bushing |
PTFE/Graphite |
PTFE/Graphite |
|
11 |
Body Gasket |
PTFE/Graphite |
PTFE/Graphite |
|
12 |
Lock Plate |
Stainless Steel |
Stainless Steel |
|
13 |
Gland Bolt |
Stainless Steel |
Carbon Steel |
|
14 |
Body Stud |
ASTM A193 B8 |
ASTM A193 B7 |
|
15 |
Body Nut |
ASTM A194 8A or 8 |
ASTM A194 2H |
|
16 |
Extension
Pipe |
Stainless Steel |
Carbon Steel |
|
17 |
Extension
Gasket |
PTFE/Graphite |
PTFE/Graphite |
|
18 |
Screw, Extension |
Stainless Steel |
Carbon Steel |
|
19 |
Cap Screw, Gear |
Stainless Steel |
Carbon Steel |
|
20 |
Worm Gear |
Commercial |
Commercial |
|
21 |
Handle Wheel |
Carbon Steel |
Carbon Steel |
|
22 |
Handle
Adapter |
Ductile Iron |
Ductile Iron |
|
23 |
Handle |
Ductile Iron |
Ductile Iron |

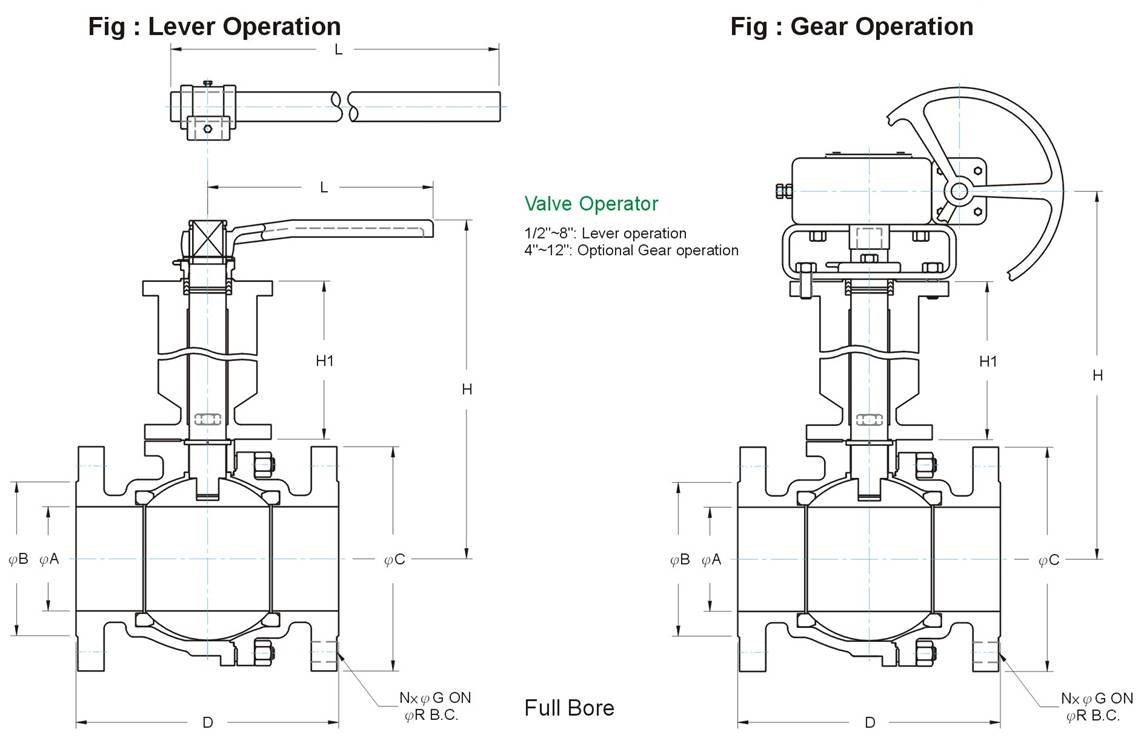

CLASS150
|
Valve Size |
Bore A |
APPROXIMATE
DIMENSON IN MM |
||||||||
|
B |
C |
D |
H |
H1 |
N |
G |
R |
L |
||
|
1/2 |
15 |
35 |
89 |
108 |
164.5 |
100 |
4 |
16 |
60.5 |
132 |
|
3/4 |
20 |
43 |
98 |
117 |
167.5 |
100 |
4 |
16 |
70 |
132 |
|
1 |
25 |
51 |
108 |
127 |
179 |
100 |
4 |
16 |
79.2 |
163 |
|
1-1/2 |
40 |
73 |
127 |
165 |
204 |
100 |
4 |
16 |
98.5 |
229 |
|
2 |
50 |
92 |
152 |
177.8 |
211 |
100 |
4 |
19 |
120.5 |
229 |
|
3 |
80 |
127 |
190 |
203.2 |
257 |
100 |
4 |
19 |
152.5 |
404 |
|
4 |
100 |
157 |
229 |
228.6 |
295 |
100 |
8 |
19 |
190.2 |
445 |
|
6 |
150 |
216 |
279 |
393.7 |
453 |
200 |
8 |
22 |
241.5 |
1143 |
|
8 |
200 |
270 |
343 |
457.2 |
504 |
200 |
8 |
22 |
296.5 |
1524 |
|
10 |
250 |
324 |
406 |
533.4 |
574 |
200 |
12 |
25 |
382 |
GEAR |
|
12 |
300 |
381 |
463 |
609.6 |
620 |
200 |
12 |
25 |
432 |
GEAR |
|
14 |
350 |
413 |
433.4 |
685.8 |
652 |
200 |
12 |
28 |
476.5 |
GEAR |
CLASS 300
|
Valve Size |
Bore A |
APPROXIMATE
DIMENSON IN MM |
||||||||
|
B |
C |
D |
H |
H1 |
N |
G |
R |
L |
||
|
1/2 |
15 |
35 |
95 |
140 |
164.5 |
100 |
4 |
16 |
66.5 |
132 |
|
3/4 |
20 |
43 |
117 |
152 |
167.5 |
100 |
4 |
19 |
82.5 |
132 |
|
1 |
25 |
51 |
124 |
165 |
179 |
100 |
4 |
19 |
89 |
163 |
|
1-1/2 |
40 |
73 |
156 |
190 |
204 |
100 |
4 |
22 |
114.5 |
229 |
|
2 |
50 |
92 |
165 |
215.9 |
211 |
100 |
8 |
19 |
127 |
229 |
|
3 |
80 |
127 |
210 |
282.7 |
257 |
100 |
8 |
22 |
168 |
404 |
|
4 |
100 |
157 |
254 |
304.8 |
295 |
100 |
8 |
22 |
200 |
445 |
|
6 |
150 |
216 |
318 |
403.4 |
453 |
200 |
12 |
22 |
270 |
1143 |
|
8 |
200 |
270 |
381 |
501.7 |
504 |
200 |
12 |
25 |
330 |
1524 |
|
10 |
250 |
324 |
444 |
568.5 |
574 |
200 |
16 |
29 |
387.5 |
GEAR |
|
12 |
300 |
381 |
521 |
647.7 |
620 |
200 |
16 |
32 |
451 |
GEAR |
