3-PC Tri - Clamp & Weld End
內容:
產品說明
NOTES:
․Blowout-proof stem
․Swing-Away body for maintenance ease
|

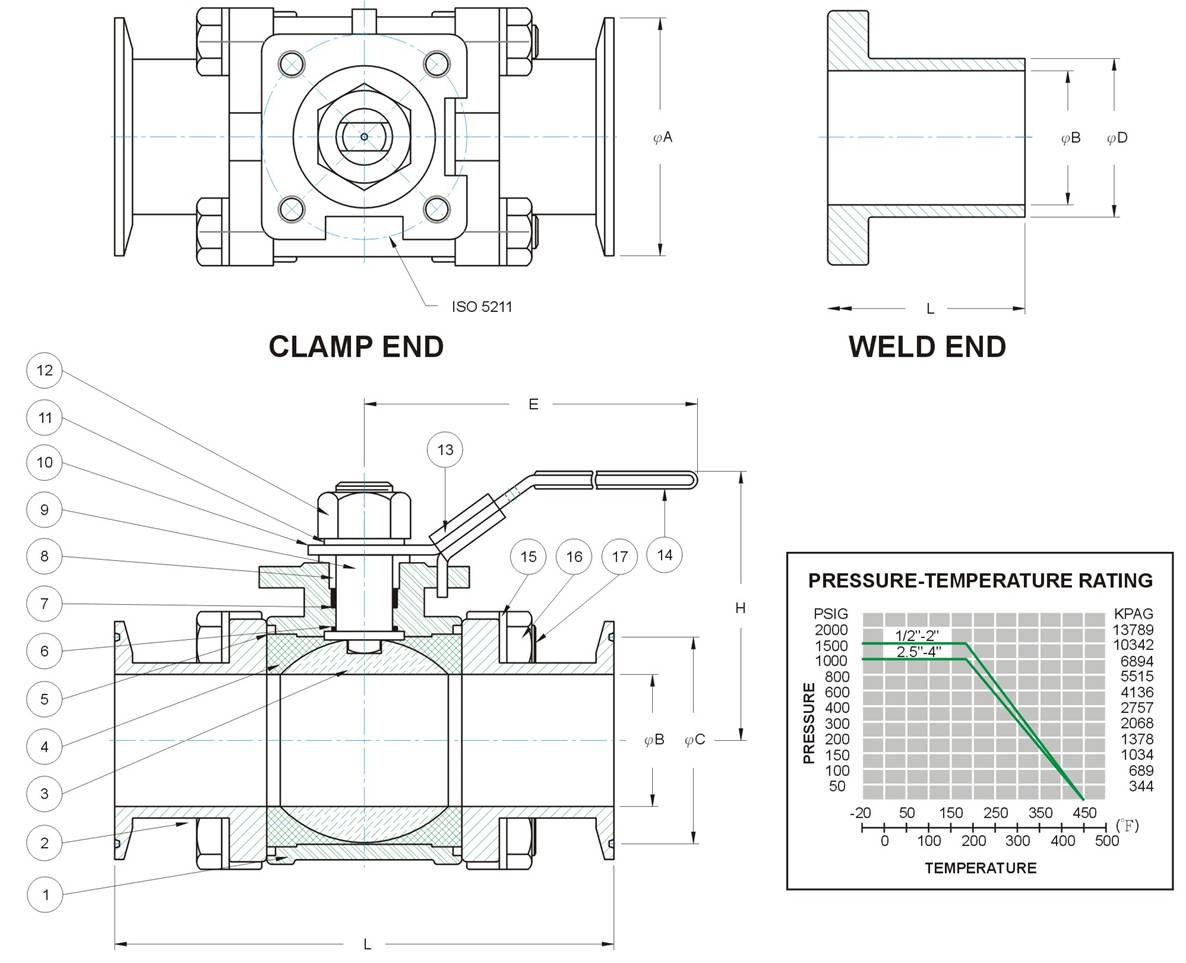

ITEM |
DESCRIPTION |
MATERIAL |
|
1 |
BODY |
ASTM A351 CF8M |
|
2 |
END
CAPS |
ASTM A351 CF8M |
|
3 |
BALL |
SUS 316 |
|
4 |
SEAT/CAVITY
FILLER |
PTFE |
|
5 |
JOINT
GASKET |
PTFE |
|
6 |
STEM
SEAL |
PTFE |
|
7 |
STEM
PACKING |
PTFE |
|
8 |
GLAND |
SUS 304 |
|
9 |
STEM |
SUS 316 |
|
10 |
HANDLE |
SUS 304 |
|
11 |
HANDLE
WASHER |
SUS 304 |
|
12 |
HANDLE
NUT |
SUS 304 |
|
13 |
LOCKING
PLATE |
SUS 304 |
|
14 |
HANDLE
GRIP |
VINYL |
|
15 |
WASHER |
SUS 304 |
|
16 |
CAP
NUT |
SUS 304 |
|
17 |
BODY
BOLT |
SUS 304 |
DIMENSIONS
|
Size |
A |
B |
C |
D |
H |
E |
L |
ISO
5211 |
|
1/2 |
25 |
9.53 |
20.2 |
12.7 |
55 |
133 |
89 |
F03 F04 |
|
3/4 |
25 |
15.9 |
20.2 |
19.1 |
59 |
133 |
101 |
F03 F04 |
|
1 |
50.4 |
22.2 |
43.6 |
25.4 |
70 |
153 |
114 |
F04 F05 |
|
1-1/2 |
50.4 |
34.9 |
43.6 |
38.2 |
84 |
190 |
140 |
F05 F07 |
|
2 |
64.5 |
47.6 |
56.3 |
50.8 |
92 |
190 |
156 |
F05 F07 |
|
2-1/2 |
77.4 |
60.2 |
70.6 |
63.4 |
128 |
247 |
197 |
F07 F10 |
|
3 |
90.9 |
73 |
83.3 |
76.2 |
137 |
247 |
229 |
F07 F10 |
|
4 |
118.9 |
97.4 |
110.3 |
101.6 |
173 |
295 |
241 |
F10 |
