MATERIAL LIST
|
Body |
ASTM A105 |
|
Closure |
ASTM
A105 |
|
Anti-Static Stem |
ADTM
A276-316 |
|
Ball |
ASTM
A351 CF8M |
|
Seat Ring |
ASTM
A351 CF8M |
|
Trunnion |
ASTM
A105 |
|
Insert, Seat Ring |
RPTFE
/ Nylon |
|
Bearing Retainer |
ASTM
A105 |
|
Gland |
Carbon
Steel |
|
Gland Bushing |
PTFE
/ Graphite |
|
Adapter Plate |
Carbon
Steel |
|
Stem Key |
Carbon
Steel |
|
Thrust Washer, Stem |
PTFE
/ Graphite |
|
Bearing, Ball |
Du
Dry Bearing |
|
Spring, Seat Ring |
Inconel
X 750 |
|
O-Ring, Body |
Viton-A |
|
O-Ring, Seat Ring |
Viton-A |
|
O-Ring, Stem |
Viton-A |
|
O-Ring, Retainer&
Trunnion |
Viton-A |
|
O-Ring, Grease Fitting |
Viton-A |
|
Cap Screw, Gland |
Carbon
Steel |
|
Cap Screw, Trunnion |
Carbon
Steel |
|
Cap Screw, Retainer |
Carbon
Steel |
|
Grease Fitting, Seat |
Carbon
Steel |
|
Check Valve |
Carbon
Steel |
|
Vent Plug |
Carbon
Steel |
|
Drain Valve |
Carbon
Steel |
|
Worm Gear Operator |
Commercial |
|
Handle Wheel |
Ductile
Iron |
|
Gasket, Retainer&
Trunnion |
PTFE
/ Graphite |
|
Stem Packing |
PTFE
/ Graphite |
|
Stem Bearing |
PTFE
/ Graphite |

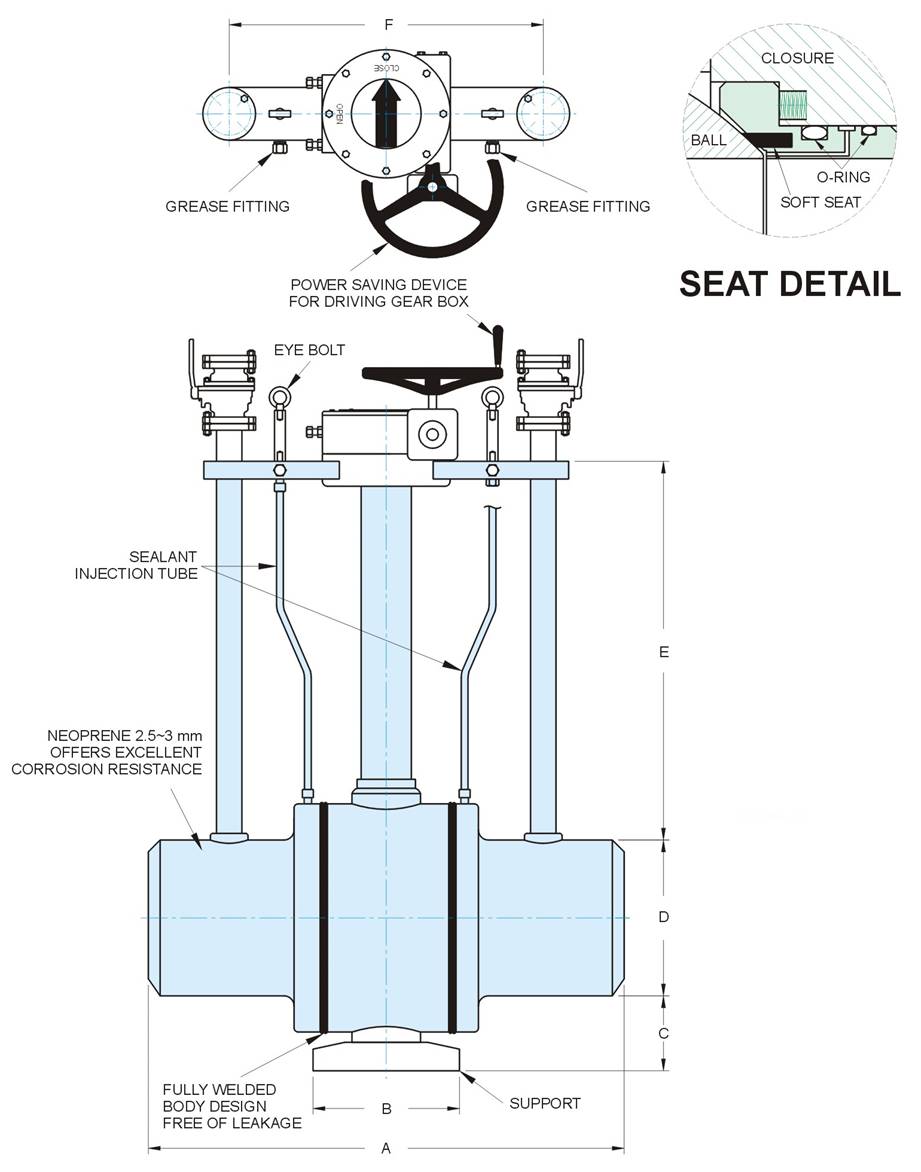

DIMENSIONS
(UNIT=MM)
|
SIZE |
A |
B |
C |
D |
E |
F |
|
100 |
905 |
200X200 |
120 |
124 |
1100(SET) |
400 |
|
150 |
1003 |
230X230 |
145 |
176 |
1100(SET) |
460 |
|
200 |
1102 |
260X260 |
160 |
231 |
1100(SET) |
540 |
|
250 |
1168 |
290X290 |
175 |
285 |
1200(SET) |
590 |
|
300 |
1248 |
320X320 |
190 |
336 |
1200(SET) |
650 |
|
350 |
1962 |
350X350 |
200 |
373 |
1200(SET) |
700 |
|
400 |
2038 |
380X380 |
220 |
424 |
1300(SET) |
760 |
|
450 |
2114 |
420X420 |
235 |
475 |
1300(SET) |
820 |
|
500 |
2191 |
450X450 |
250 |
526 |
1300(SET) |
900 |
NOTES:
˙Fully Welded Body Design
˙Blowout-Proof Stem
˙Face to Face to std B
16.10
˙Butt Welded Ends to std B
16.34
˙API 6D Standard
