DESCRIPTION |
MATERIAL |
|
|
CF8M |
WCB |
|
|
Body |
ASTM A351 CF8M |
ASTM A216 WCB |
|
Insert |
ASTM A351 CF8M |
ASTM A216 WCB |
|
Stem S/A |
ASTM A276-316 |
ASTM A276-316 |
|
Ball |
ASTM A351 CF8M |
ASTM A351 CF8M |
|
Seat |
RPTEF/Peek |
RPTEF/Peek |
|
Stem Packing |
PTFE/Graphite |
PTFE/Graphite |
|
Stem Bearing |
PTFE/Graphite |
PTFE/Graphite |
|
Thrust Washer |
PTFE/Graphite |
PTFE/Graphite |
|
Gland |
ASTM A351 CF8 |
ASTM A351 CF8 |
|
Gland Bushing |
PTFE/Graphite |
PTFE/Graphite |
|
Body Gasket |
PTFE/Graphite |
PTFE/Graphite |
|
Gland Bolt |
Stainless
Steel |
Carbon Steel |
|
Handle |
Ductile Iron |
Ductile Iron |
|
Lock Plate |
Stainless
Steel |
Stainless
Steel |
|
Worm Gear |
Commercial |
Commercial |

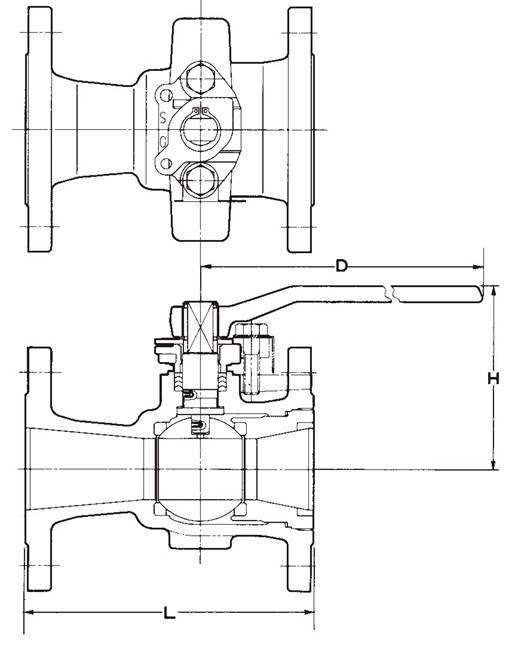

Dimensions of 1010-150# / JIS-10K
|
Valve Size |
In |
3/4 |
1 |
1.5 |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
|
mm |
20 |
25 |
40 |
50 |
80 |
100 |
150 |
200 |
250 |
300 |
|
|
Bore |
in |
0.5 |
0.8 |
1.2 |
1.5 |
2.3 |
3.0 |
4.5 |
5.9 |
7.3 |
8.9 |
|
mm |
15 |
20 |
30 |
38 |
58 |
76 |
114 |
151 |
186 |
227 |
|
|
L |
in |
4.6 |
5.0 |
6.5 |
7.0 |
8.0 |
9.0 |
10.2 |
11.5 |
13.0 |
14.0 |
|
mm |
117 |
127 |
165 |
178 |
203 |
229 |
267 |
292 |
330 |
356 |
|
|
H |
in |
2.3 |
2.6 |
3.3 |
4.1 |
5.6 |
6.3 |
8.2 |
9.9 |
11.4 |
13.1 |
|
mm |
59 |
66 |
84 |
104 |
142 |
160 |
208 |
252 |
289 |
334 |
|
|
D |
In |
5.2 |
5.2 |
6.4 |
9.0 |
15.9 |
15.9 |
17.5 |
45 |
60 |
N/A |
|
mm |
132 |
132 |
163 |
229 |
404 |
404 |
445 |
1143 |
1524 |
GEAR |
Dimensions of 1030-300# / JIS-20K
|
Valve Size |
In |
1 |
1.5 |
2 |
3 |
4 |
6 |
8 |
|
mm |
25 |
40 |
50 |
80 |
102 |
152 |
203 |
|
|
Bore |
in |
0.8 |
1.2 |
1.5 |
2.3 |
3.0 |
4.5 |
6.0 |
|
mm |
20 |
30 |
38 |
58 |
76 |
114 |
152 |
|
|
L |
in |
6.5 |
7.5 |
8.5 |
11.1 |
12.0 |
15.9 |
16.5 |
|
mm |
165 |
190 |
216 |
282 |
305 |
403 |
419 |
|
|
H |
in |
2.6 |
3.3 |
4.1 |
5.6 |
6.3 |
8.2 |
9.9 |
|
mm |
66 |
84 |
104 |
142 |
160 |
208 |
252 |
|
|
D |
In |
5.2 |
6.4 |
9.0 |
15.9 |
15.9 |
17.5 |
45.0 |
|
Mm |
132 |
163 |
229 |
404 |
404 |
445 |
1143 |
Dimensions of 1060-600# / JIS-40K
|
Valve Size |
In |
2 |
3 |
4 |
6 |
|
mm |
50 |
80 |
100 |
150 |
|
|
Bore |
In |
1.6 |
2.1 |
3.0 |
4.0 |
|
mm |
40 |
53 |
76 |
102 |
|
|
L |
in |
11.5 |
14.0 |
17.0 |
22.0 |
|
mm |
292 |
356 |
432 |
559 |
|
|
H |
in |
4.1 |
5.6 |
7.2 |
7.2 |
|
mm |
104 |
142 |
182 |
182 |
|
|
D |
In |
9.0 |
15.9 |
17.5 |
17.5 |
|
Mm |
229 |
404 |
445 |
445 |
